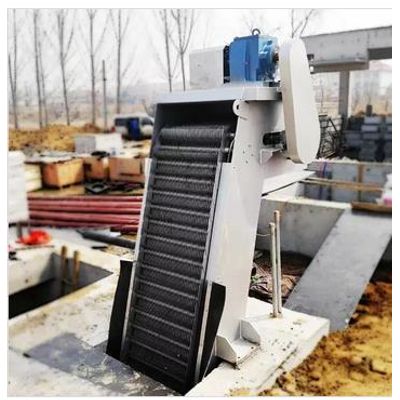

Shengshi - Model WZSS-20 -Rotary Mechanical Grille
This equipment can continuously and automatically remove various shapes of debris in the fluid, and is mainly used for solid-liquid separation. It is widely used in urban sewage treatment, tap water industry, power plant water inlet, textile, food processing, papermaking, leather and other industries. It is one of the most advanced solid-liquid separation equipment in my country.
- Material: stainless steel
- Rake teeth: stainless steel/nylon
- Gap: custom
- Channel width: custom
- Channel depth: custom
- Slag discharge height: custom
- Operation mode: automatic or intermittent
- Installation angle: custom
- Place of use: sewage treatment plant
- Power: 0.35kw
- Processing capacity: custom
- Origin: Weifang
- Brand: WZSS
The rotary mechanical screen is driven by a motor reducer. The rake chain performs continuous top-down circular motion under the drive of the motor and reducer. When the rake chain moves to the upper and back of the equipment, the parallel rake rows are misaligned due to the guiding effect of the sprocket and the curved rail, and the solid dirt falls into the slag trough by its own weight. The dirt that falls off is cleaned up by the reverse movement of the sweeper.
