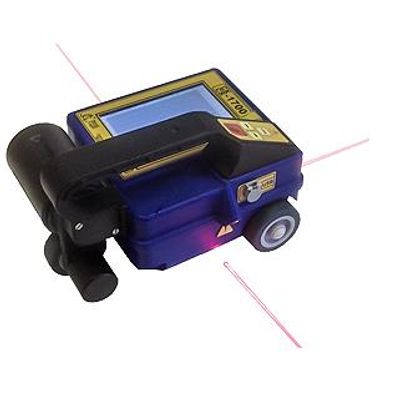

Shijay - Model 1700 -Portable Construction Scan Radar

Construction Scan 1700 includes a control processing unit, LCD display, the antenna unit AB-1700 and a power supply unit in one enclosure. The control processing unit provides processing, displaying and saving of the scanning results. CS-1700 accumulates information in the internal 2 GB Flash memory card and transfers it to the PC via the USB interface. There is a special marking rug with a bar code for precision 3D scanning of objects.

• All-in-one GPR system
• Colour 5" TFT display
• Laser indicator of movement
• Built-in USB interface
• Wheels with odometer
• Quickly-detachable 15 V battery
• Built-in odometer
• Internal 2 GB Flash memory card
• Running time 4 hours

• Detection and location of different defects in reinforced concrete
  • Cells, cavities
  • Foreign inclusions
  • Cracks, layering
• Determination of reinforcement specifications
  • Size
  • Occurrence depth
  • Degree of corrosion
• Detection of buried wiring, cables and communications lines
• Detection of plastic and metal pipelines
• Detection of heterogeneities, anomalies and other buried in solid environment (which wood, brick, reinforced concrete, building constructions, soil, etc)
• Discovering of ventilation and communication channels
• •Detection of shelters and covered-up holes
