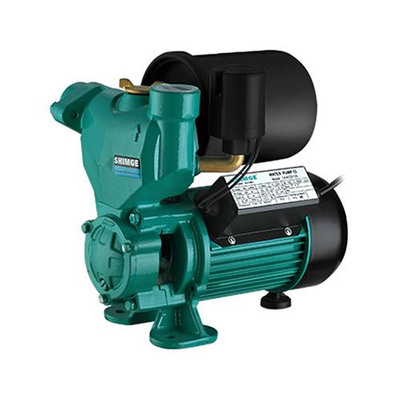

Shimge - Model AWZB -Automatic Self-Priming Peripheral Pump
Performance Range: Max.Flow: 4.8m3/h Max. Head: 50m.
Most popular related searches
automatic self-priming pump
self-priming pump
water supply
asynchronous motor
copper wire
well water
check valve
automatic watering system
peripheral pump
well water system
Motor
- Single-Phase 220V/50Hz
- Mechanical seal: Ceramic/Graphite/EPDM rubber
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection: IP44
- Insulation: Class B
Optional Available on Request
- 304 stainless steel welding shaft
- Electrophoretic pump body and connections
- NSK bearing
- Motor whose insulation class is F
- Other voltage or frequency is 60Hz
Application Limits
- Suction head up to 8m
- Liquid temperature up to +90?
- Ambient temperature up to +40?
- Max. Working pressure: 5bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Applications Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in living water supply, water tower water supply, automatic irrigation system, well water lifting, various corollary equipment, etc.
- Automatic self-priming pump
- Bulit-in check valve
- Stainless steel 304 inserts
