Shimge Pump Industry Group Co.,Ltd.

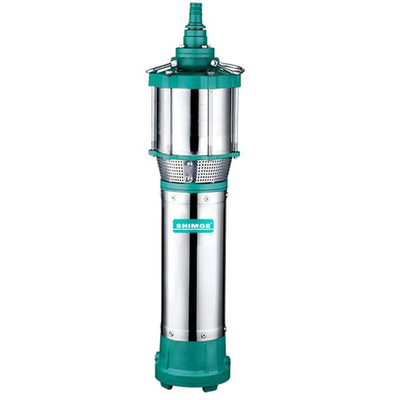

Shimge - Model Q(D)Y-K2 -Multi-Stage Submersible Pump
Applications Fields: Due to multi-stage structure, Q(D)Y-K2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells, reservoirs, aquaculture. etc.
Most popular related searches
submersible pump
multistage submersible pump
multistage pump
multistage centrifugal pump
high head centrifugal pump
centrifugal pumping
well pumping
well pump
water supply
centrifugal pump
Performance Range
- Max. Flow: 34m3/h
- Max. Head: 127m
Application Limits
- Maximum liquid temperature +40*C
- pH level from 6.5-8.5
- Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
- Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from-10% to 10%.
- Immersion depth from 0.5m-5m
Features
- Oiled well pump motor structure, portable and durable.
- The impeller and flow components are made of engineering plastics which apply to use in seawater.
- High head, multistage centrifugal pump.
