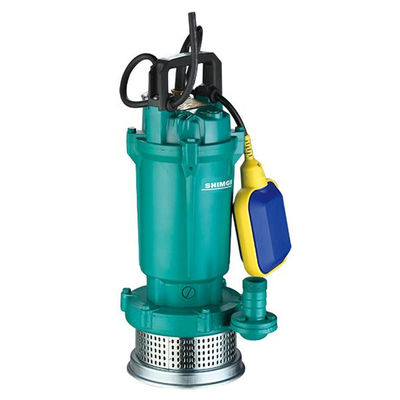

Shimge - Model QDX-K1 -Submersible Drainage Pump
Applications Fields: Suitable for transferring water without abrasive particles. Suitable for well water lifting, farm irrigation, garden irrigation and living water supply. Suitable for industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc.
Most popular related searches
submersible pump
water supply
submersible drainage pump
industrial water
well water
construction site water
submersible drainage
drainage pumping
drainage pump
water industry
- Max. Flow: 68m3/h
- Max. Head: 33m
- Maximum liquid temperature +40℃
- pH level from 6.5-8.5
- Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
- Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
- Immersion depth from 0.5m-5m
- New industrial design, lower motor temperature rise.
- Optimized motor design, improved efficiency.
- Alloy impeller of high performance engineering plastics or aluminum.
- Other voltage or frequency is 60Hz
