ShoreVAP - Wastewater Evaporation
A "variable wild card" in wastewater treatment might work for your operations, depending on the type of waste stream and the volumes involved. Evaporation might allow you to GREATLY reduce or even eliminate the water portion of your wastewater stream. Evaporation can ELIMINATE the potential for some of the downstream and "cradle-to-grave liability" and provides an easily adapted, quick and clean method for disposal or reduction of many aqueous waste streams, with ZERO LIQUID DISCHARGE!
Waste Oil Fired Systems: The ShoreVAP evaporator goes one step further than all other types of evaporators—it uses the oils separated from the water to fuel the evaporator. Waste water generated from bilge water, gray water and even treated black waters or deck water can be evaporated away leaving oils and solvents, which are then used to fuel the burner that heats the water in the evaporator. If you are paying to get rid of your wastewaters—STOP IT!
You might save a bundle on reduced storage and handling fees, commercial waste hauling, training, insurance compliance and potential fines associated with wastewater spills, equipment malfunctions or human error. Eliminate it!
GAS FIRED & ELECTRIC: All units are available in powder-coated mild or (optional) stainless steel.
Each unit includes:
- heat source (electric, natural gas/propane)
- adjustable thermostat
- redundant safety control systems
- vent stack
- exhaust fan, which also acts as a down stream draft inducer in gas units
Wastewater is pumped, batch fed or poured into a ShoreVAP evaporator. Non-emulsified oils are skimmed and channeled to an external receptacle. ShoreVAP units have under floor heating that handles a high suspended solids level. The solids concentrate and remain in the evaporator for later removal. Under floor heating simplifies the solids removal because the bottom is flat and sloped, and there are no immersion heaters or heat tubes to clean around. A three inch drain port on each unit allows convenient solids removal.

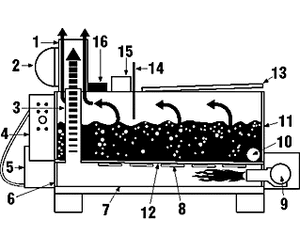

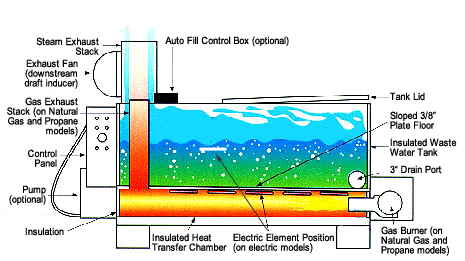

- Steam Exhaust Stack
- Exhaust Fan (down stream draft inducer on gas units)
- Gas Exhaust Stack (on gas units)
- Control Panel
- Pump (optional)
- Insulation
- Insulated Heat Transfer Chamber (gas units)
- Electric Element Position (on electric units)
- Gas Burner (on gas units)
- Three inch drain port
- Insulated Wastewater Tank
- Insulated Sloped 3/8 inch Plate Floor of Wastewater Chamber
- Tank Lid
- Oil Skimmer
- Oil Skimmer Motor
- Auto Fill Control Box (optional)
Features & Benefits
- Heavy Duty 12 Gauge Tank, Covers, & Stack (Carbon or 316L Stainless Steel)
- Adjustable Burner (Natural Gas or Propane) with electronic ignition, flame rectification system, and air pressure sensor.
- Automatic Shutoffs (Low Level Control & High Temperature Shutdown) for unattended operation
- Simple one button ON/OFF operation
- Removable Lid for fast and easy Cleanout
- Fully Insulated Tank.
- Variable weir oil skimmer.
- Power exhaust allows venting to outdoors
- Quality polyurethane finish
- Tank Top at convenient 36" height to facilitate cleanout
- Easily installed requiring only a vent stack, electrical hookup, and gas line.
- Industry Standardized Components. Most parts are available from major industrial supply houses. You are not held hostage by high mark up on "captive" parts only available by the original equipment manufacturer.
- Optional 70 GPM Self Priming Feed Pump
- Optional Auto Fill System
- One Year Warranty on Parts & Workmanship
