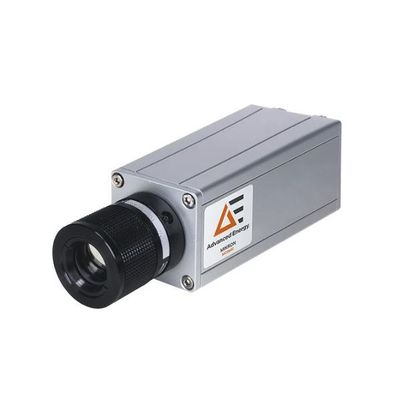

LumaSense Mikron - Model MCS640 and MCS640-HD -Short Wavelength Thermal Imagers
The Mikron MCS640 thermal imagers measure temperatures between 600 and 3000°C with minimal interference from temperature reflections. It`s streamlined design, makes it easy to integrate MCS640 thermal imagers into compact production machines. And solid and robust housing provide reliability in harsh industrial environments. The MCS640 series offers standard and HD versions. The MCS640-HD can be paired with an optional water-cooled enclosure for additional protection in harsh industrial environments where ambient temperatures exceed 50°C.
Short Wavelength Thermal Imagers for Temperature Measurement between 600 and 3000°C
Advanced Energy`s Mikron MCS640 series offers short wavelength infrared (SWIR) thermal imagers with internal digital signal processing. The imagers are suitable for graphite, ceramics, and metallic-surface applications.
- Uncooled, fully radiometric detector (UFPA)
- Spectral range: NIR (short wavelength), customer specific adaptation on request
- Display of temperature at 307,200 measurement points (640 x 480 pixel)
- Obtain high quality images of small objects: 640 x 480 pixel detector
- Configure to meet exact measurement needs: Wide range of optics for macroscopic and microscopic applications
- Enable dynamic temperature processes: Image acquisition of 60 frames per second
- Unique superior measurement accuracy of 0.5% of reading
- Display of images in real-time at 60 Hz (60 images per second)
- 1000 Mbit/s Gigabit Ethernet data transmission
- Compact in size with a small weight of 0.7 kg
Performance
- Temperature Range
- MB16: 600 to 1600°C
- MB30: 800 to 3000°C
- See data sheet for subranges.
- Filter
- MCS640/I5: 780 to 1080 nm
- MCS640/I1: 850 nm
- MCS640/V: 650 nm
- MCS640/I4: 750 nm
- MCS640/I8: 1080 nm
- Measurement Accuracy: ±0.5% of reading in °K
- Repeatability: 0.1% of measured value in °K + 1°K
- Image Update Rate: 60 Hz (frames per second)
- Detector: 640 x 480 pixels; silicon
- Emissivity: 10.0 to 100.0% adjustable via interface in steps of 0.1% (for full frame camera picture)
- Transmittance: 10 to 100% (in application software)
Optical Specifications
- Lenses
- Standard lens (10.8° x 8.1°)
- Wide angle lens (40.4° x 30.9°)
- Wide angle lens (33.3° x 25.3°)
- Wide angle lens (22.5° x 17°)
- Telephoto lens 2x (5.4° x 4.0°)
- Telephoto lens 3x (3.5° x 2.6°)
- Focus Range: Lens dependent
- Digital Zoom: 1 to 8x using LumaSpec RT software
Interface
- Analog Output: None
- Digital: Gigabit Ethernet (1000 MBit/s)
- Connections: 12 pin power connector; RJ45 Ethernet connector
Environmental Specifications
- Operating Ambient Temperature: 0 to 50°C
- Storage Temperature: -40 to 70°C
- Relative Humidity: Non-condensing conditions
- Weight
- MCS640: 0.7 kg (1.5 lb)
- MCS640-HD: 3.0 kg (6.6 lb)(depends on final lens configuration)
- Housing: Aluminum extrusion
- Dimensions:
- MCS640: 55.5 x 170 x 62.5 mm (2.91 x 7 x 2.46 in) (without lens)
- MCS640-HD: 114.3 x 168.4 x 115.8 mm (4.5 x 6.63 x 4.56 in)
- Protection Class: IP65 (IEC 60529); NEMA 4
- Compliance: CE
Electrical
- Power Input: 24 VDC, 1 A
- Power Consumption: 10 W typical, 13 W max
- Metals process control
- Preheating
- Annealing
- Tempering
- Welding
- Continuous casting
- Forging
- Hardening
- Sintering
- Melting
- Soldering
- Brazing
- Rolling
- Predictive maintenance
- Torpedo ladle monitoring
- R & D, aerospace, and defense
- Studying material ablation on re-entry space vehicle
