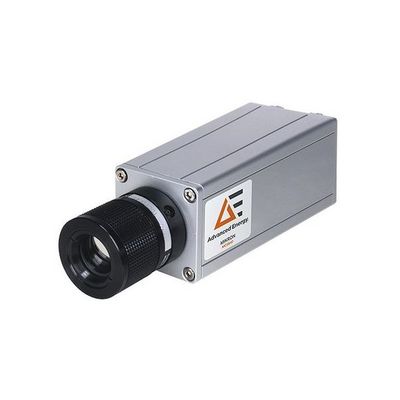

Advanced Energy - Model MIKRON MCS640 -Short Wavelength Thermal Imagers for Temperature Measurement Between 600 and 3000°C
Advanced Energy`s Mikron MCS640 series offers short wavelength infrared (SWIR) thermal imagers with internal digital signal processing. The imagers are suitable for graphite, ceramics, and metallic-surface applications. Uncooled, fully radiometric detector (UFPA). Spectral range: NIR (short wavelength), customer specific adaptation on request. Display of temperature at 307.200 measurement points (640 x 480 pixel).
The Mikron® MCS640 thermal imagers measure temperatures between 600 and 3000°C with minimal interference from temperature reflections. It`s streamlined design, makes it easy to integrate MCS640 thermal imagers into compact production machines. And solid and robust housing provide reliability in harsh industrial environments.
The MCS640 series offers standard and HD versions. The MCS640-HD can be paired with an optional water-cooled enclosure for additional protection in harsh industrial environments where ambient temperatures exceed 50°C.
- Obtain high quality images of small objects: 640 x 480 pixel detector
- Configure to meet exact measurement needs: Wide range of optics for macroscopic and microscopic applications
- Enable dynamic temperature processes: Image acquisition of 60 frames per second
- Unique superior measurement accuracy of 0.5% of reading
- Display of images in real-time at 60 Hz (60 images per second)
- 1000 Mbit/s Gigabit Ethernet data transmission
- Compact in size with a small weight of 0.7 kg
Performance
Temperature Range
- MB16: 600 to 1600°C
- MB30: 800 to 3000°C
Filter
- MCS640/I5: 780 to 1080 nm
- MCS640/I1: 850 nm
- MCS640/V: 650 nm
- MCS640/I4: 750 nm
- MCS640/I8: 1080 nm
Measurement Accuracy
±0.5% of reading in °K
Repeatability
0.1% of measured value in °K + 1°K
Image Update Rate
60 Hz (frames per second)
Detector
640 x 480 pixels; silicon
Emissivity
10.0 to 100.0% adjustable via interface in steps of 0.1% (for full frame camera picture)
Transmittance
10 to 100% (in application software)
Optical Specifications
Lenses
- Standard lens (10.8° x 8.1°)
- Wide angle lens (40.4° x 30.9°)
- Wide angle lens (33.3° x 25.3°)
- Wide angle lens (22.5° x 17°)
- Telephoto lens 2x (5.4° x 4.0°)
- Telephoto lens 3x (3.5° x 2.6°)
Focus Range
Lens dependent
Digital Zoom
1 to 8x using LumaSpec RT software
Interface
Analog Output
None
Digital
Gigabit Ethernet (1000 MBit/s)
Connections
12 pin power connector; RJ45 Ethernet connector
Environmental Specifications
Operating Ambient Temperature
0 to 50°C
Storage Temperature
-40 to 70°C
Relative Humidity
Non-condensing conditions
Weight
- MCS640: 0.7 kg (1.5 lb)
- MCS640-HD: 3.0 kg (6.6 lb)(depends on final lens configuration)
Housing
Aluminum extrusion
Dimensions
- MCS640: 55.5 x 170 x 62.5 mm (2.91 x 7 x 2.46 in) (without lens)
- MCS640-HD: 114.3 x 168.4 x 115.8 mm (4.5 x 6.63 x 4.56 in)
Protection Class
IP65 (IEC 60529); NEMA 4
Compliance
CE
Electrical
Power Input
24 VDC, 1 A
Power Consumption
10 W typical, 13 W max
Typical Applications
- Metals process control
- Preheating
- Annealing
- Tempering
- Welding
- Continuous casting
- Forging
- Hardening
- Sintering
- Melting
- Soldering
- Brazing
- Rolling
- Predictive maintenance
- Torpedo ladle monitoring
- R & D, aerospace, and defense
- Studying material ablation on re-entry space vehicle
