Untha - Shredding Machine Power Core
The UNTHA Power Core serves as an energy source for the shredding process in locations where no suitable power supply is (yet) available or for temporary use.
- Suitable for autonomous operation of the XR & ZR shredders
- Enables stand-alone operation without any additional connections on site
- Plug & play – quickly ready for use
- Up to 20–25% lower fuel consumption
- Full integration into the MyUNTHA customer portal
- Complies with current EPA Final Tier 4 / EU Stage V emissions standards
Perfectly matched
The Power Core has been precisely tailored to the requirements of the XR & ZR shredders.
Dynamic & durable
The Power Core`s performance automatically adapts to the shredding process. This enables the generator to operate continuously at its rated power, thereby extending its service life.
Fuel-saving
Thanks to the high dynamics of the Power Core, a generator that is only half the size of the engines usually required can be used. This enables fuel savings of approx. 20–25%.
Insulation monitoring
The integrated insulation monitoring system guarantees maximum safety and flexibility – without any additional installations – and ensures reliable monitoring of the system.
Compact & quiet

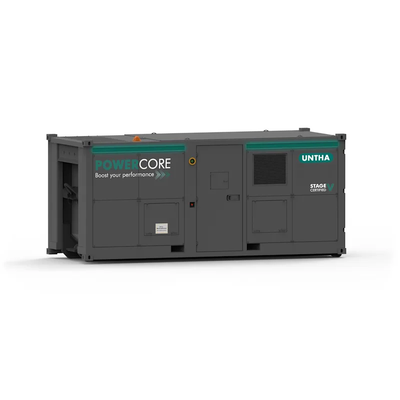

The generator set is installed in a soundproof, lockable, and compact 20-foot container. This reduces noise emissions to a minimum and protects the Power Core from environmental influences.
POWER CORE

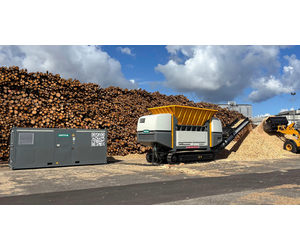

The UNTHA Power Core is a generator for the independent operation of XR and ZR series shredders at locations without a power supply. Ideally suited for bridge phases or temporary use, for example, during test operations or rental.
Test the XR shredder directly on site
The best way of finding out more about the quality and cost-effectiveness of our revolutionary XR class is to test it on your own premises. We will take the XR shredder to where you are and process your materials in real-life conditions. This way, you may be 100% sure that you have taken the right decision, independent of whether you choose a stationary or mobile unit.
MyUNTHA - Make your business easier
The MyUNTHA customer portal gives you access to all your shredder data and useful features such as the spare parts catalog & online store, maintenance manager and the GENIUS digital assistance system. MyUNTHA supports you in your daily work with your shredder and helps to make processes even more efficient.
What sets the Power Core apart
- Diesel Engine: John Deere 6136 CG550
- Drive power: 585 kVA / 505 kW
- Operating voltage: 400V / 480V (50 / 60Hz)
- Consumption: 30 – 50 l/h
UNTHA's Power Core was developed specifically for use with the XR and ZR series and is precisely tailored to their requirements. During the shredding process, the Power Core regulates its performance independently based on the shredder's actual energy requirements. Thanks to its high dynamics, a significantly more compact motor can be used than would usually be necessary.
The result: particularly efficient and resource-saving operation, enabling fuel savings of around 20–25%.
Depending on the material (composition), cutting mechanism, and perforated screen, the Power Core can drive the shredder for up to 25 hours. With the optionally available additional tank, the operating time can be increased to 100 hours.
