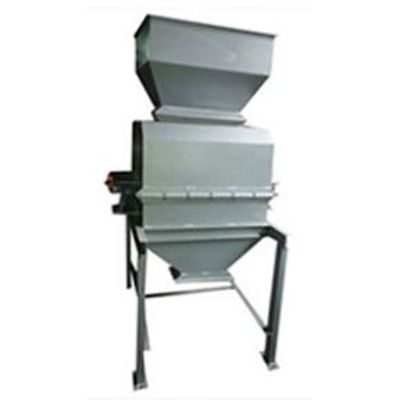

Shri-Vishwakarma - Inline Drum Magnetic Separator

• Drums can be ordered with or without housing.
• Magnetic Drum Separator system is a complete machine with Stainless Steel 304 / 316
• Housing & Drive system. Only drum separator unit can also be supplied.
• The Drum Separators are available in two types:
• High Intensity – (Ndfeb Magnet – 5500 gauss), for Operating Temperature of 80?C(Max.)
• Low Intensity - (Ferrite Magnet - 2500 gauss), for Operating Temperature of 250?C(Max.)
• Ferrous fine particles, nuts, bolts, pins, nails and other tramp metal from free-flowing granular material can be arrested effectively.

When material flows onto the drum, a stationary magnetic assembly inside the unit`s shell captures tramp metal and holds it securely to the drum`s stainless steel surface. With contaminants removed, the good product falls freely to a discharge point. As the drum rotates, cleats sweep the ferrous debris through and out of the magnetic field. The tramp metal is discharged separately, creating continuous self-cleaning separation.

Magnetic Drums have the following features

• Designed for continuous separation and self cleaning. Ideal for high-flow, heavy-contamination applications. It comes with Stainless steel drum and mild steel or stainless steel housings
• Maximum Recovery of Ferrous Metals
• Minimum Maintenance
• They require minimum space and are simple to operate.
• They are flexible enough to be applied for various purposes

• Helps in removing ferrous particles from any non ferrous powder and granules
• Ideal for plastic, food, fertilizer, pharmaceutical, chemical, glass and continuous process plants
• Provide utmost protection to crushers, grinders, pulverizes, and allied equipment
• Can be used for mining and ore dressing industry
• Eliminate fire hazards and explosions in plants dealing with explosive material.
• Save money, time and labour by reducing break-down time and improving quality

The magnetic drum separator consists of a rotating drum and stationary drum magnet designed as per the specific needs of the customer. The Drum separator is supplied with drive system and SS 304/316 housing along with feed regulating valve.

The following Information is required

• Type of material from which Iron is to be separated. (Sticky, Granular, Free flowing, Lumps etc)
• Size and level/percentage of contamination
• Flow rate of material
• Size/Density of the material particle

The Magnetic Drum filters out iron contamination and hence is widely used in all the processing industry for the separation of iron contamination from

• Minerals and Chemicals
• Food and Flour
• Plastics
• Grains
• Sand
• Fertilizers
• Abrasives
• Glass
• Slag
• Ores
• Rock
• Refractory
