Shri-Vishwakarma - Vibratory Motor

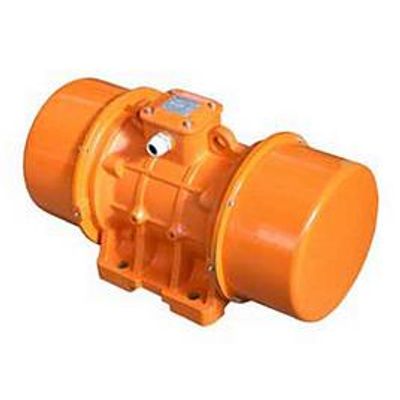

Shree Vishwakarma Magnetic manufactures unbalance vibratory motor which is used as the drive for vibrating machine for bin discharging products, feeding, screening etc. Different type of material can be handled such as minerals, refractory, dyes, chemicals, intermediates, food products etc. We have specially designed a vibratory motor for cement blocks and cast cement components. The vibratory motor is available in 3000, 1440, 980 & 750 RPM and from 1HP to 5HP.
Unbalance motors are asynchronous AC Motors with pairs of centrifugal weights fitted to the ends of the motor shafts. The size of the unbalance and with it the amplitude of the oscillation by the working unit can be adjusted by shifting the centrifugal weights when the motor is at a standstill.
A stable, rigid motor shaft and roller bearings with a long service life allow the unbalance motors to be operated continuously even under difficult operating conditions.
The unbalance motors are supplied in 2,4,6 and 8 Pole versions. This means the motor speed and therefore the oscillation frequency can be ideally selected to suit each particular application.
The unbalance motors are also available in a special version for mains voltages up to 690V and for a mains frequency ranging from 50 Hz to 60 Hz.
We Manufacture Following Types of Vibratory Motors
- Unbalance Vibratory Motor
- Center Flange Vibratory Motor
- Double Flange Vibratory Motor
- Foot Mounted Vibratory Motor
- Industrial Vibrator Motor
- Top Flange Vibratory Motor
