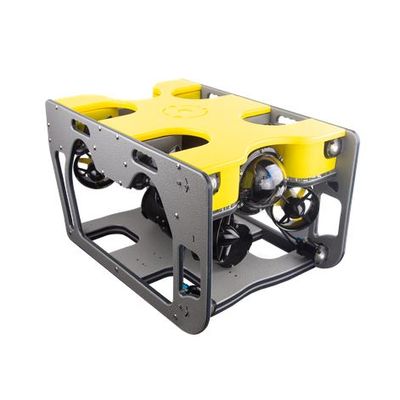

Sibiu - Model Pro -Underwater Drones
It includes: 150 m Cable with Quick Connector, 1 Coil Pick-Up Cable, 2 Batteries, 1 Charger, 1 Transport Case, 1 Drone Pilot Course with Nido Robotics and 12 months of Premium Maintenance! An underwater drone with which you can develop research, inspection and maintenance of submerged systems in the most safe and efficient way you have ever imagined.
Its 1080p camera, specifically optimized for the underwater environment, along with its four 1500 lumens lights will allow you to obtain a clear image in low-light environments.
It incorporates eight propellants, which gives it smoothness and stability in navigation. In addition, the latest generation engineering with which it has been built and its technological innovation allow it to reach depths of up to 300m.
- Height
- Width
- Length
- Weight without ballast
- Weight with ballast
- Buoyancy Foam
- Batery connector
- Battery
- 28,8 cm
- 34,3 cm
- 52,4 cm
- 11,05 kg
- 12,45 kg
- R-3318
- XT90
- 4S (14.8V, 18Ah)
- Conductors
- Diameter
- Length
- Work Force
- Breaking Strain
- Flotation (Salt water)
- Flotation (Fresh water)
- Reinforcement
- Waterproof
- 4 twisted pairs, 26 AWG
- 7,6 mm
- 25-300 m
- 45 Kg
- 160 Kg
- Slight positive
- Neutral
- with kevlar
- Sodium polyacrylate
- Maximum depth
- Propellers
- ESC
- Maximun work current
- Configuration of propellant
-
- 4 Vertical
- 4 Horizontal
- 300 m
- T-200
- Afro 30A
- 3 knots
- Gyroscope 3-DOF
- Accelerometer 3-DOF
- Magnetometer 3-DOF
- Internal barometer
- Pressure sensor Bar30 Blue Robotics
-
-
- Current and voltage sensor
-
- Humidity sensor
Temperature sensor
- A computer with:
o 2.7 GHz processor
o 8 GB of RAM
o Graphics compatible with Direct 12
o Compatible with Windows, Mac and Linux
- Camera
- Field of view
- Tilt range of the camera
- EMAX ES08MD 13g Mini Metal
- Digital Servo For RC Model
- 1080 Digital
- 110º horizontalmente
- +/- 90º (180º rango total)
-
Weigth: 16 kg
-
Maximun depth: 300 m
-
Light: 4 X 1500 lumens (regulation control))
-
Camera: 1080p
-
Battery: 2h (with average use of motors)
-
Maximun speed: 3 knot
