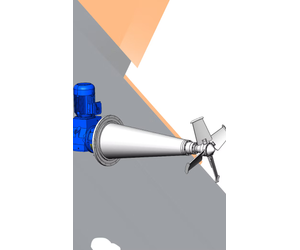

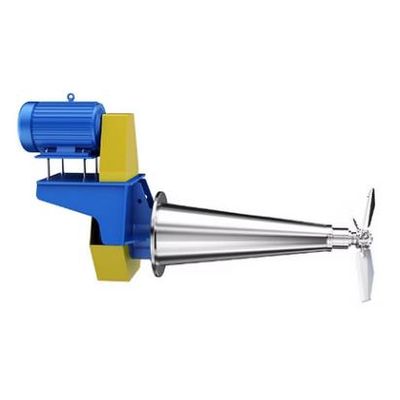

Sunkaier - Model SK800C PULP -Side Entry Mixer
SK800C side entry mixer is specially design for the application the pulp mill plant for the reason that SK800C has a robustic design to endure heavy duty operation.
SUNKAIER SK800C side-entry mixer is engineered for heavy-duty applications, such as pulp chest mixing, where high torque, stability, and reliability are critical. The inboard bearing system plays a key role in ensuring smooth and stable operation under demanding conditions.
SK800C side entry mixer is specially design for the application the pulp mill plant for the reason that SK800C has a robustic design to endure heavy duty operation.

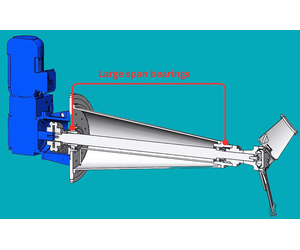

1. Inboard Bearing Support System
The agitator shaft is supported by a heavy-duty inboard bearing (typically a spherical roller bearing or sleeve bearing) located inside the tank. This bearing absorbs radial and axial loads, preventing excessive shaft deflection and vibration. Ensures stable rotation even with long shafts and high torque demands (common in pulp & paper applications).
2. Robust Shaft Design
The shaft is short-coupled (minimizing overhang) and made from high-strength stainless steel or carbon steel with coatings for corrosion resistance. Large diameter shaft to handle high bending moments in pulp suspensions.
3. Sealing Mechanism
Mechanical seals or packing glands prevent leakage along the shaft penetration into the tank. Abrasion-resistant sealing surfaces for durability in fibrous media (e.g., pulp slurries).
4. Impeller & Flow Dynamics
High-efficiency impellers (e.g., hydrofoil, pitched blade, or specialized pulp agitator designs) generate axial flow to keep fibers in suspension. Optimized rotational speed ensures uniform mixing without dead zones in large chests.
Pulp & Paper Industry
- Mixing of pulp suspensions
- Chemical preparation (e.g., bleaching agents, starch)
- Effluent treatment tanks
