Pibiviesse - Side Entry Trunnion Mounted On-Off High Temperature Ball Valve

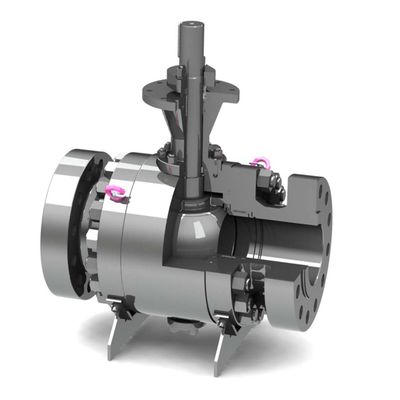

Side Entry Ball valve for High temperature service up to 600 °C. 2 or 3 piece bolted body, high temperature stem extension, metal seated, flexible design suitable to meet a broad range of high temperature specification requirement.
Most popular related searches
Product Design & Range
- 2 or 3 piece Split Body Bolted
- Trunnion Mounted Ball
- API 6D size range from 2" to 60", pressure ratings ASME cl. 150# to 2500#
- API 6A size range from 1.13/16" to 20", pressure ratings 2000 to 10000 psi
- Flanged RF/RTJ, Compact, Clamped Hubs and Butt-Weld end
- Material grades: CS, 316ss, 6Mo, Duplex, S-Duplex, Monel, Nickel Alloys
- Design Temperature range -46 / 650°C
The Side Entry Ball design is the most commonly used in the upstream, midstream and downstream sectors of the Oil & Gas Industry. Offshore FLNG, Onshore Production, Refining & Petrochemical, Onshore Treatment, Offshore Platform & FPSO
- Platform
- FPSO
- FLNG
- Production
- Treatment
- Refining & Petrol
- Full and Reduced Bore
- Long Pattern
- Spring Energized Floating seats
- Bi-directional
- Anti-blow out stem
- Anti-static design
- Flushing point on seats
- Emergency sealant injection on stem
- Fire Safe
- Soft, Metal-to-Metal sealing
- SPE (Self Relieving), DIB-1 or DIB-2 seat design
- See the enclosed Valve Data Sheet for the complete product design features and options available.
