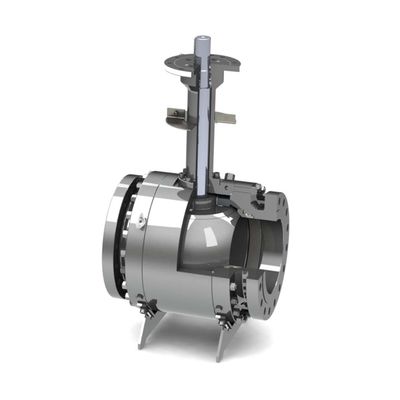

Pibiviesse - Side Entry Trunnion Mounted On-Off Low Temperature Ball Valve
Side Entry Ball valve for Low temperature and Cryogenic service. 2 or 3 piece bolted body, cryogenic stem extension, soft or metal seated, flexible design suitable to meet a broad range of low temperature specification requirement.
Most popular related searches
Product Design & Range
- 2 or 3 piece Split Body Bolted
- Trunnion Mounted Ball
- API 6D size range from 1/2" to 64", pressure ratings ASME cl. 150# to 2500#
- API 6A size range from 1.13/16" to 11", pressure ratings 2000 to 10000 psi
- Flanged RF/RTJ, Compact, Clamped Hubs and Butt-Weld end
- Material grades: LTCS, Stainless Steel
- Design Temperature range -196 / 230°C
The Side Entry Ball Valves Low Temperature & Cryogenic design is the most commonly used in the upstream and midstream sectors of the Oil & Gas Industry. Onshore LNG Plant and Offshore FLNG, Onshore Production, Refining & Petrochemical, Onshore Treatment, Offshore Platform & FPSO
- Platform
- FPSO
- FLNG
- Production
- Treatment
- LNG Plant
- Refining & Petrol
- Full and Reduced Bore
- Long Pattern
- Spring Energized Floating seats
- Bi-directional
- Anti-blow out stem
- Anti-static design
- Extended Bonnet
- Fire Safe
- Soft, Metal-to-Metal sealing
- SPE (Self Relieving) or DIB-2 seat design
- See the enclosed Valve Data Sheet for the complete product design features and options available.
