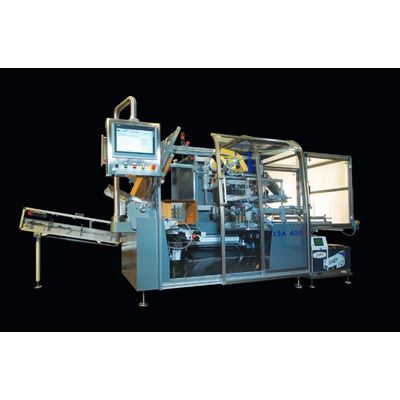

ALCI - Model 400 -Side Loading Automatic Case Packer

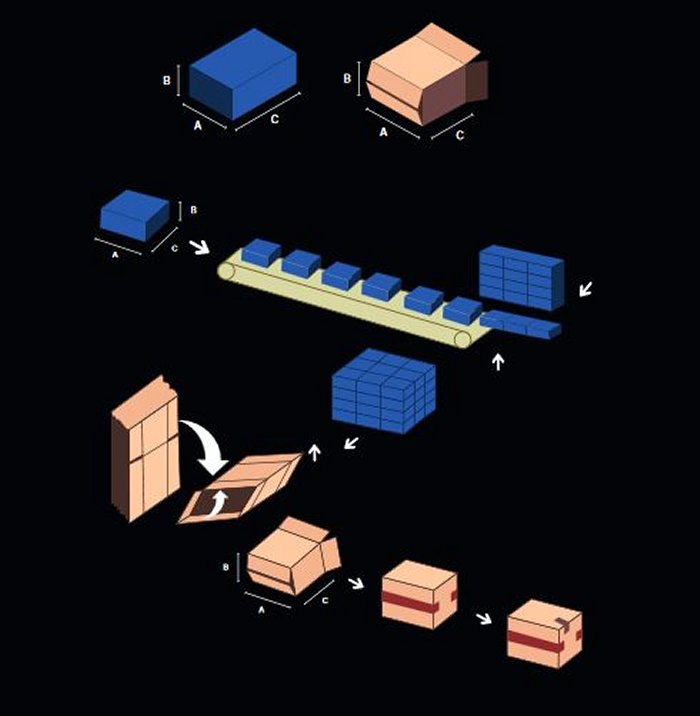

Side loading case packer, suitable for the packaging of individual or bundled cartons into American cases. The machine footprint is extremely compact and it is the ideal solution in case of space restrictions at the end of the line.
Cases can be sealed by means of an adhesive tape and/or of hot-melt or vinyl glue.
Size change-over takes only a few minutes to perform and does not require the use of any tools. Fine adjustments can be done through digital indicators.
The machine is equipped with a nodding carton magazine for easy loading.
Pick-up and forced opening arms fitted with suction cups ensure that the case is maintained perfectly erected during product insertion, while the precise conveyor system ensures positive delivery of the filled case to the sealing station.
- Pre-stacking Station
- Brushless motorized Stacking Station
- Pusher concealing System for Aggregation Inspection® Case Print or Labelling Station
- Pusher Inspection Clear System® allows to free the inspection area and allows the camera to inspect a full layer into the mobile hopper, (European patent N° WO 2015/107452 A1)
- The inspection is performed in the mobile hopper, the last step before the introduction of the full cartons composition into the formed case
- The distance between the camera lens and the layer is always the same, regardless of format size and the number of layers: the camera doesn`t need the autofocus functionality
- The camera position doesn`t need to be changed by format. The inspection area is predetermined as the maximum area, the camera can acquired. The vision system can set the capture grid by format
- Every Vision/Aggregation system can be integrated in the Machine
- The Pick up Arm (counterclockwise rotating Axis, Brushless Motor Servo-driven) performs a gentle case taking
- The Positive forming Arm (clockwise rotating Axis, Brushless Motor Servo-driven) opens in positive way the case and put it, perfectly squared, in front of the Cartons Hopper
- This integrated Arms system is moved ahead by The Case translation Axis, Brushless Motor Servo-driven
- Vacuum switch and alarm for each suction cup
- Regulations 2006/95/C 2004/108/CE CEI EN 60204-1 - CEI EN 60034-1 ISO/IEC12100-12 - ISO/IEC14121 ISO/IEC4414 - ISO/IEC 13849-2
- Declaration of Conformity CE Products to be processed YES Cartons, Bundles, Cases, Case Labete
- Type of cartons/bundles feeding Automatic
- Type of Cases feeding Manual on Buffer
- Format Adjustment YES
- Electrical voftage 400V3Ph + N + Pe
- Electrical frequency 50 Hz
- Installed Power 8kW
- Compressed Air 6 bar, Single feed point
- Use Frequency 24h/day
- Use Temperature 5PC + 4VC
- Use Humidity <80%
- P&A Angle System YES

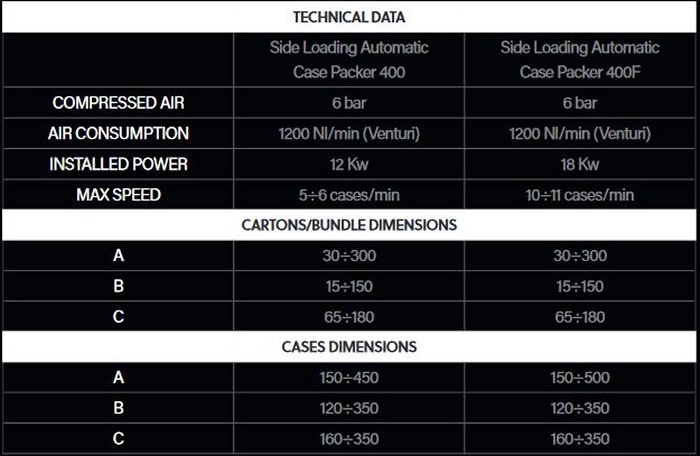

- Cartons/Bundles Size processable
- A = 25-i-300mm
- B = 12-*-150 mm
- H = 65-5-180 mm
- Case Size processabte -
- A = 150-=-480 mm
- B = T10-r350mm
- H = 75-r350mm
- User Interface YES
- User Interlace Language Italian
- Machine Speed Cases/minute: - 1 -r 10 - Non-Serialized process - 1-H5 -Non Serialized process with motorized stacking station - 1-r 7-Serialized process. Note: The Machine Speed depends on cartons composition
- Downstream machine Match YES
- Upstream machine Match YES
- Doc. Use and Maintenance Manual YES
- Doc. Bectrical Scheme YES
- Doc. Pneumatic Scheme YES

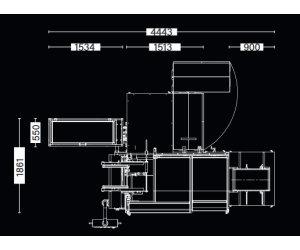

- Doc Machine Layout YES
- Doc. Functional Specifications YES
- Doc Operator Manual YES
- Doc Machine Advises YES
