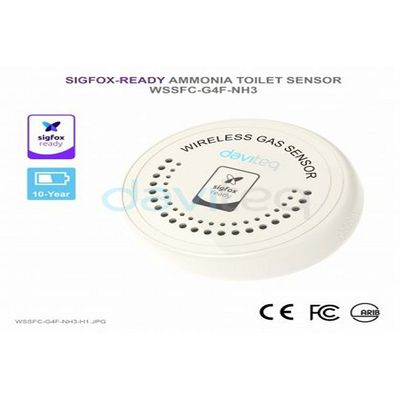

Daviteq - Model WSSFC-G4F-NH3 -Sigfox-Ready NH3 and H2S Sensor for Toilet
WSSFC-G4F-NH3 is a Sigfox-ready sensor with a built-in advanced gas sensor to measure the concentration of Ammonia NH3 and H2S to help assess odors in the Toilet. With a special design that increases the sensitivity of the sensor, even though it is mounted on the ceiling at a distance of up to 2.6m. The sensor has an ultra-low-power design and smart firmware that allows the sensor to run on 2 x 1.5VDC AA batteries for 2-5 years with 15 minutes of updating. The sensor supports Sigfox network regions of the world, RC1, RC2, and RC4. Typical application: Odor monitoring in private or public restrooms, toilets, and WC, helps to manage optimal cleaning staff.
Most popular related searches
H2S
odorant monitor
odor monitor
clean air
gas sensor
remote sensor
odor monitoring
H2S monitoring
electrochemical sensor
gas monitoring sensor
High Sensitivity
- Special design to get high sensitivity even the sensor is mounted on ceiling up to 2.6m
- Allow mounting the sensor on ceiling or high wall to prevent tampering
- For Sigfox zone RC1, RC2, and RC4
- Allow the sensor to run in 2-5 years with 2 x AA batteries
| Sensor type | High sensitive electrochemical type sensor, built-in auto-sampling mechanism |
| NH3 range | 0..100 ppm (or equivalent 0..285.7 ppm H2S) |
| NH3 tolerance limit | 200 ppm |
| Repeatability / Resolution / Stability per month | < 3% of reading / 0.1 ppm / < 1% of reading/month |
| Zero-point stability | +/- 0.3 ppm |
| Ambient pressure | 101.3 Kpa +/- 10% |
| Sensor life | 2 years, in clean air |
| Working temperature | -10 .. + 50°C |
| Working humidity | 15.. 90% RH |
| SIGFOX SPECIFICATIONS: | |
| Sigfox region supports | RC1, RC2, and RC4 |
| Antenna | Internal antenna 2dbi |
| Configuration | Via Downlink or USB cable (software on PC provided free of charge) |
| Battery | 02 x AA size 1.5VDC, battery not included |
| RF module | Complied to CE, FCC, ARIB standards |
| Electronics | -40°C..+60°C (AA Energizer Lithium Ultimate battery installed) |
| Case/protection grade | ABS, indoor use, do not spray water directly on the device |
| Dimensions/Weight | Diameter 95mm x Height 40mm / < 250g |
