MGB-TECH - Model PPS3 - G10 -Signal Splitter for PPS and NMEA

SHARE

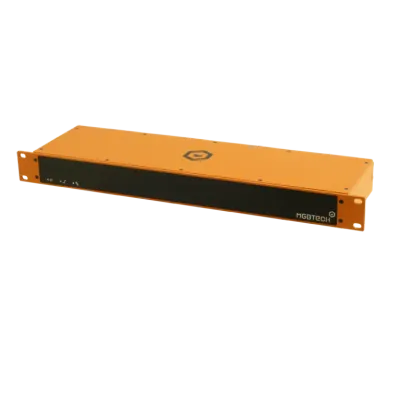

The PPS3-G10 is a robust 10-port signal splitter designed to handle intricate PPS and NMEA signals. Primed for high-demand applications, it features full galvanic isolation for each port, supporting both RS232 and RS485 communication, configurable per port. The unit presents adjustable PPS input settings, including trigger voltage, impedance, and rising or falling edge detection, providing versatility in signal processing. With a durable steel chassis, it operates across -20°C to +50°C, featuring a 482mm x 148mm x 44mm compact design. Data transmission up to 115200 baud is assured through standard D-SUB connectors, facilitating seamless communication. Extensive power options support 10-30VDC with a maximal consumption of 30 Watt. Enhanced with LED status indicators for operational efficiency, it also offers a highly configurable toggle PPS pulse output for precise synchronization. Compatible for land or marine environments, the PPS3-G10 ensures reliable signal distribution tailored to industry-specific requirements.
Most popular related searches
marine environment
transmission data
  • 10 output ports
  • Full galvanic isolation between ports
  • NMEA message splitter
  • Configurable Rs232 or Rs422 per port
  • LED indicators
  • 10-30VDC supply
  • Small sturdy housing

Our standard PPS3- G10 is designed for the most demanding applications.
It is configurable to handle almost every PPS source and distribute the signals to multiplepulse consumers

Full Featured splitter
This product features four output channels and is fully protected with complete galvanic isolation. It supports all communication protocols, parity configurations, and bit settings. Additionally, an NMEA splitter is fully integrated.


485
232
RS232 and RS485 support
A standard D-SUB connector is used, allowing seamless switching between RS232 and RS485 on a per-channel basis. It supports data transmission speeds of up to 115200 baud, ensuring flexible and reliable communication.

Highly configurable PPS input
Our PPS Pulse Splitter input provides extensive configuration options, including adjustable trigger voltage, input impedance, and selectable rising or falling edge detection, ensuring optimal flexibility and performance.

Clear LED indicators
LED indicators provide a clear and intuitive status check for power, PPS pulse trigger, and data communication, ensuring seamless monitoring and operation.

Toggled PPS pulse output
The toggle PPS pulse output is accessible via the D-SUB connector in RS232 mode, with the signal level alternating on each input pulse for precise synchronization.

Durable build
The housing is constructed from a strong, sturdy steel, designed to withstand operating temperatures ranging from -20°C to +50°C, ensuring reliability in demanding environments.

Communication Ports

  • Support both Rs232 and RS485
  • Max baud rate 115200 baud
  • Supports all protocols parity and bitsettings

PPS pulse Output

  • Minimal length after stretching 20ms
  • Voltage level 5V
  • Signal impedance 50 Ohm
  • Delay from input
  • Delay difference between channels

PPS pulse input

  • Trigger levels 1V - 2V - 3V - 4V
  • Signal impedance 50 Ohm or high impedance
  • Rising or falling edge trigger

Power characteristics

  • Wide input: 10-30VDC
  • Max power consumption: 30 Watt

Back connections

  • 10 x BNC (PPS outputs)
  • 10 x 9P D-SUB female (NMEA outputs)
  • 1 x BNC (PPS input)
  • 1 x 9P D-SUB male (NMEA input)
  • 1 x 3P male M16 (power)

Environmental

  • Operational temperature: -20°C +50°C

Mechanical

  • 482mm x 148mm x 44mm
  • 4 x 19“ mounting holes
  • Weight 1050 gram
