Silencer - Model Commercial Pro - ...

Silencer - Model Commercial Pro -Chutes

FromSilencer Chutes

SHARE

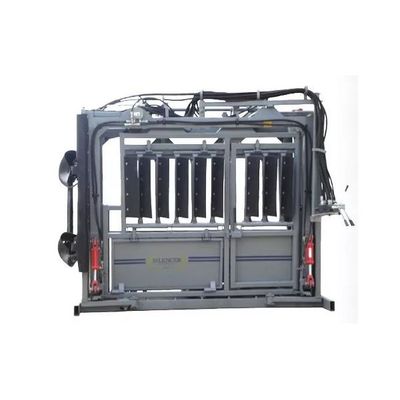

SILENCER Commercial Pro model (also available in extended model) is designed for high volume and heavy usage of cattle through the chute. Best suited for large volume cattle operations. Yearling option - Same overall SILENCER dimensions with a lowered dropbar area for more body access on lightweight cattle. Chute is also available with 1-side yearling option and 1-side regular sidegate. Ranch Model and Extended Ranch Model have left or right controls or Pivot Controls from side to side or front to back. Add a carrier for a quick, portable chute. One-year warranty.

Most popular related searches

pressure relief valve

hydraulic valve

extensible hose

pump pressure relief valve

hydraulic motor pump

Additional Add-on Equipment:

TurretGate
SILENCER: Ranch, Heavy Duty, Extended, Galvanized, Tilt
Alleys: Single, Dual and Transitions
Carriers: Yoke, Heavy Yoke, Carry-All, Overhead
Scales: Platform, Overhead

COMMERCIAL PRO: SPECIFICATIONS

Length: 102"
Width: 48"
Height: 93"
Approx. Weight (lbs): 4015
Mainframe: 4"x2"x5/5/16", rectangular tubing, 2"x2" square tubing
Cylinders: (5) 4x2 cylinders, (1) 2x6 cylinder, main cylinder pins, greasable
Head & Tail Doors: Full-opening and fully sheeted; wedge tail doors
Overall Outside Length: 102"
Overall Inside Length: 91"
Side Gates: 1/4" wall, extra neck access
SILENCER Pump Weight (lbs): 235
Head & Tailgate Height: 67 1/2"
Inside Chute Height: 67 1/2"
Total Width, Doors Open: 67"
Total Width, Doors closed (including hydraulic levers): 59"
Fitted Hoses: Yes
30ft of Extension Hose: Yes
Reinforced Construction: Yes
Primed Before Pained: Yes
Oil-based Urethane Bearings: Yes
130 Polyethylene Contact Points: Yes
Standard 3 Spool Hydraulic Valves: Yes
Floor: 1/4" floor for increased life of chute
Modular construction for superior maintenance: Yes
Replaceable heavy-duty drop bars: Yes
Bearings and Connectors: 8 quick-chamge, relube roller bearings - top connectors and lower head door connector
Extra neck access side: Optional

Pivot controls - front-to-back or side-to-side
Dual controls
Rubber-belted louvers on sidegates
Side exit – (per side) left, right or both
Hydraulic lower squeeze
Hydraulic neck bars (adjustable) – 2 neck bars included
Hydraulic head restraint – left or right
Neck extension bar (each)
De-Horner head restraint – left or right
Rear walk-through doors (26 inches) – (per side) left, right or both
Additional neck access - (per sidegate) left, right or both
Hydraulic kick bars
Brisket Bar
Power supply options: 5 HP Electric Hydraulic Pump (industrial motor with pressure relief valve & quick couplers) – 1 or 3 phase; Gas Powered HPV 550 Hydraulic Pump: Honda 6.5 HP engine, hydraulic pump, two spool valve with pressure relief, reservoir, oil filter, female quick couplers, carry package includes handles
Scale options: Weigh-Tronix Platform Scales; Weigh-Tronix Overhead Scales; Weigh-Tronix Overhead Scales for Extended Model Chute
