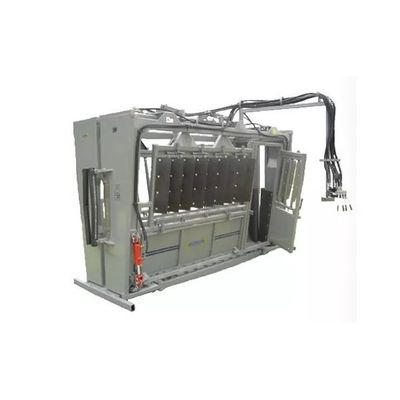

Silencer - Model Heavy-Duty -Chutes

• Yearling option - Same overall SILENCER dimensions with a lowered dropbar area for more body access on lightweight cattle. Chute is also available with 1-side yearling option and 1-side regular sidegate.
• Heavy Duty model and Extended Heavy Duty model have left or right controls or Pivot controls from side to side or front to back.
• Add a carrier for a quick, portable chute. Carry-All carrier is available for Heavy Duty model and Overhead carrier is available for Extended Heavy Duty model.
• One-year warranty.

Additional Add-on Equipment:

HEAVY-DUTY MODEL: Specifications

• Length: 100"
• Width: 48"
• Approx. Weight (lbs): 3095
• Mainframe: 4"x2"x3/16", rectangular tubing, 2"x2" square tubing
• Cylinders: (6) 4x2 cylinders, (1) 2x6 cylinder, (8) main cylinder pins greaseable
• Head & Tail Door: Full-opening and fully sheeted
• Overall Outside Length: 102"
• Overall Inside Length: 91"
• Side Gates: 1/4" wall
• SILENCER Pump Weight (lbs): 235
• Head & Tail Height: 67 1/2"
• Inside Chute Height: 67 1/2"
• Total Width (Doors Open): 67"
• Total Width (Dorrs Closed, including hydraulic levers): 59"
• Fitted Hoses: Yes
• 30ft of Extension Hose: Yes
• Reinforced Construction: Yes
• Primed Before Painted: Yes
• Oil-based Urethane Bearings: Yes
• 130 Polyethylene Contact Points: Yes
• Standard 3 spool Hydraulic Valves: Yes
• Floor: 1/4" floor for increased life of chutes
• Modular Construction for superior maintenance: Yes
• Relaceable heavy-duty drop bars: Yes
• Bearings and Connectors: 8 quick-change, relube roller bearings - top connectors and lower head door connector
• Standard 3 Spool Hydraulic Valves: Yes

• Pivot controls & pivot with overhead scales (left or right controls) - front-to-back or side-to-side
• Dual controls
• Rubber-belted louvers on sidegates
• Side exit  –  (per side) left, right or both
• Hydraulic lower squeeze
• Hydraulic neck bars (adjustable) – 2 neck bars included
• Hydraulic head restraint – left or right
• Neck extension bar (each)
• De-Horner head restraint – left or right
• Rear walk-through doors (26 inches) – (per side) left, right or both
• Additional neck access - (per sidegate) left, right or both
• Rebar floor - Available on Heavy Duty & Heavy Duty Extended Models. Not available on Ranch or Ranch or Ranch Extended Models.
• Hydraulic kick bars
• Brisket Bar
• Power supply options: 5 HP Electric Hydraulic Pump (industrial motor with pressure relief valve & quick couplers) – 1 or 3 phase; Gas Powered HPV 550 Hydraulic Pump: Honda 6.5 HP engine, hydraulic pump, two spool valve with pressure relief, reservoir, oil filter, female quick couplers, carry package includes handles
• Scale options: Weigh-Tronix Platform Scales; Weigh-Tronix Overhead Scales; Weigh-Tronix Overhead Scales for Extended Model Chute
• Carriers: Yoke, Carry-All or Overhead Carriers
