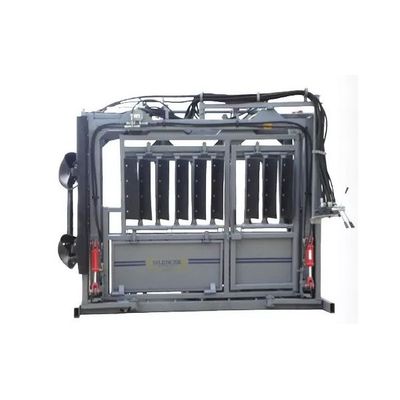

Silencer - Model Ranch -Chute
SILENCER Ranch Model (also available in extended model) includes a patented full-opening head and tail doors providing 26” of clearance so full-term cows and herd bulls enter and exit the chute without hanging up their lower bodies. Designed for a wide-range of livestock sizes and weight. Yearling option - Same overall SILENCER dimensions with a lowered drop bar area for more body access on lightweight cattle. Chute is also available with 1-side yearling option and 1-side regular side gate. Ranch Model and Extended Ranch Model have left or right controls or Pivot Controls from side to side or front to back. Add a carrier for a quick, portable chute. One-year warranty.
- TurretGate
- SILENCER: Ranch, Heavy Duty, Extended, Galvanized, Tilt
- Alleys: Single, Dual and Transitions
- Carriers: Yoke, Heavy Yoke, Carry-All, Overhead
- Scales: Platform, Overhead
Ranch Model: Specifications
- Length: 100"
- Width: 48"
- Height: 93"
- Approx. Weight (lbs): 2495
- Mainframe: 4"x2" x 1/8", rectangular tubing, 2"x2` square tubing
- Cylinders: (5) 4x2 cylinders, (1) 2x6 cylinder, main cylinder pins greaseable
- Head & Tail Doors: Full- opening and fully sheeted
- Overall Cutside Length: 102"
- Overall Inside Length: 91"
- Side Gates: 1/8` wall
- SILENCER Pump Weight (lbs): 235
- Head & Tailgate Height: 67 1/2"
- Inside Chutes Height: 67 1/2"
- Total Width (Doors Open): 67"
- Total Width (Doors Closed, including hydraulic levers): 59"
- Fitted Hoses: Yes
- 30ft of Extension Hose: Yes
- Reinforced Construction: Yes
- Primed Before Painted: Yes
- Oil-based Urethane Bearings: Yes
- 130 Polyethylene Contact Points: Yes
- Standard 3 Spool Hydraulic Valves: Yes
If Chute has Front-Back Pivot Controls - Add 3" to Height
If Chute has Side-Side Pivot Controls - Add 5" to Height
Each chute comes with a one-year warranty
- Pivot controls & pivot with overhead scales (left or right controls) - front-to-back or side-to-side
- Dual controls
- Rubber-belted louvers on sidegates
- Side exit – (per side) left, right or both
- Hydraulic lower squeeze
- Hydraulic neck bars (adjustable) – 2 neck bars included
- Hydraulic head restraint – left or right
- Neck extension bar (each)
- De-Horner head restraint – left or right
- Rear walk-through doors (26 inches) – (per side) left, right or both
- Additional neck access - (per sidegate) left, right or both
- Hydraulic kick bars
- Brisket Bar
- Power supply options: 5 HP Electric Hydraulic Pump (industrial motor with pressure relief valve & quick couplers) – 1 or 3 phase; Gas Powered HPV 550 Hydraulic Pump: Honda 6.5 HP engine, hydraulic pump, two spool valve with pressure relief, reservoir, oil filter, female quick couplers, carry package includes handles
- Scale options: Weigh-Tronix Platform Scales; Weigh-Tronix Overhead Scales; Weigh-Tronix Overhead Scales for Extended Model Chute
- Carriers: Yoke, Carry-All or Overhead Carriers
