JINTAI - Model JT-CFF-SC -Silicon Carbide Ceramic Foam Filter

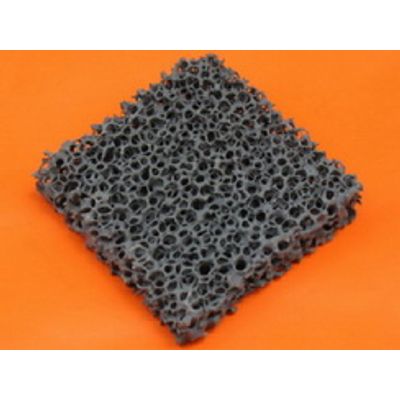

JINTAI Silicon Carbide Ceramic Foam Filters mainly for filtration of cast iron and non-ferrous alloys. With their excellent resistance to attack and corrosion from molten iron liquid, they can effectively remove inclusions, reduce trapped gas from liquid metal and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
JINTAI Silicon Carbide Ceramic Foam Filters(JT-CFF-SC) is available in all standard dimensions and different thickness. The most common porosities are PPI 10, 20 and 30; higher porosities are available upon request. Custom-made cut-to-size filters are also possible.
JINTAI Silicon Carbide Ceramic Foam Filters(JT-CFF-SC) common sizes in Round shape:
40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm, 70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm
JINTAI SiC Ceramic Foam Filters(JT-CFF-SC) common sizes in Square shape:
40x40x11mm, 40x40x15mm, 50x50x22mm, 75x75x22mm, 50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm
- Working Temperature: ≤1540°C
- Porosity: 80~90%
- Compression Strength
- (Room Temperature): ≥1.0Mpa
- Volume Density: 0.3-0.5g/cm3
- Thermal Shock Resistance: 1200°C---room temperature 3 times
- Application: cast iron, cast copper, cast bronze, cast brass
- high temperature gas filter,
- chemical fillings and catalysis carrier etc.
