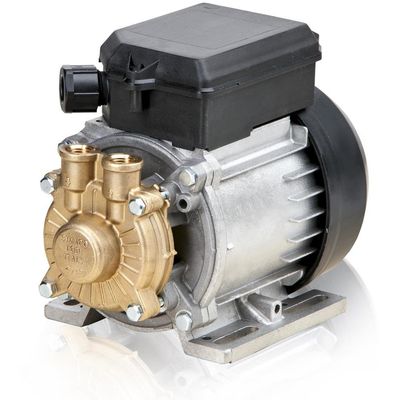

SimacoModel C 36 -Regenerative Turbine Electric Pumps

SHARE

Continuous duty S1. 2 pole motor. Insulation class F. Protection IP42. Working tolerance: +/- 10%. Liquid temperature (with anti-freeze additive): -20 °C / +90 °C. Limit ambient temperature : +40 °C. Normal priming, manometer suction up to 5m. For clear waters/oils and non-aggressive dilutions, without abrasive substances.

Most popular related searches

MATERIALS

  • BodyCuZn/RYTON
  • RotorCuZn/PEEK
  • ShaftAISI420

WEIGHT

  • C 36: 3,8 Kg
  • CP 36: 3,4 Kg
  • MD C 36: 3,9 Kg

IN ACCORDANCE WITH

  • EN 60034-1.
  • EN 60034-30.
  • EN 60335-1.
  • EN 60335-2-41.

ON REQUEST

  • Special voltages
  • Dual-frequency
  • Special fluids with temperature <180 °C
  • Other IP degrees
  • cRUus certified motors for selected tensions
