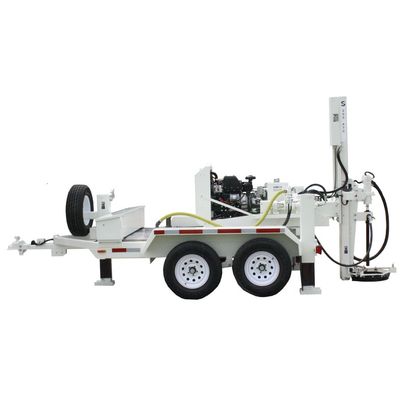

SimcoModel 255 PTC -Pavement Core Drilling Rig

SHARE

The SIMCO 255 PTC pavement core drilling rig has made the competition nervous from the day of its conception. This rig makes short work out of any pavement coring job. The SIMCO 255 PTC pavement core drilling rig is ideal for the hard to access Keyhole pavement coring drill jobs. With SIMCO you are not just buying a drill rig you are getting unmatched service and support that you won’t find anywhere else. The SIMCO 255 PTC pavement core drilling rig is backed by the best warranty in the drilling industry. Due to its compact size and weight this rig can be mounted to most any carrier. (Capabilities subject to drilling conditions). (We offer two different drillhead options for 2”-12” Cores and another for 6”-18” Cores).

Most popular related searches
  • 2”-18” Diameter Cores through all types of pavement
  • Capabilities may vary depending on conditions.
  • Drillhead Torque: 200 ft lbs / 500 ft. lbs
  • Drillhead RPM: 1,000 rpm / 425 rpm
  • Pullback: 14,700 lbs
  • Push Down: 10,200 lbs
  • Drillhead Travel - Net Stroke: 42”
