Simflex - ISO Stardard Die Springs
Die Springs are heavy duty metal compression springs manufactured using rectangle wire. The ISO 10243 standard defines the following parameters for rectangular section wire compression springs: Dh: housing diameter, also known as external diameter. Do: lead pin diameter, also known as internal diameter. Lo: length of the spring in the resting position, also known as the free length. R: load, expressed in Newton, necessary to deflect a 1mm spring (1 Newton = 0.102 kg).
Most popular related searches
shock absorber
valve actuator
hydraulic cylinder
corrosion protection
corrosion protection coating
heavy metals
actuated valve
protective coating
hydraulic valve
Material
- Die springs are mainly made of spring steel 55CrSi?60Si2Cr, other material can be customized.
Standard
- ISO series die springs are offered in 5 duty ranges, our most expansive range.

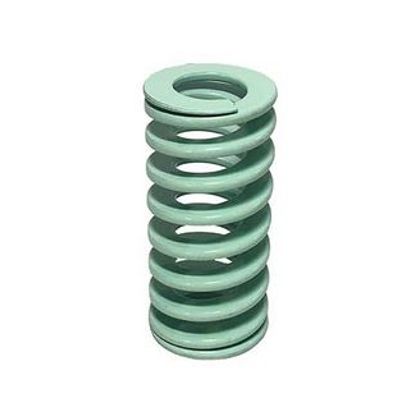

- Extra light Load Die Spring-Light green. Specification data
- Light Load Die Spring-Green Specification data
- Medium Load Die Spring-Blue Specification data
- Heavy Load Die Spring-Red Specification data
- Super Heavy Load Die Spring-Yellow Specification data
Corrosion Protective
- Electrostatic adsorption coating: adapt to large-scale automatic coating production line
- Shot-peened for extended life.
- Powder Coated for corrosion resistance and color coded for ease of identification.
- Closed and Ground Ends to provide appropriate squareness and adequate large bearing surface and will stand on either end.
- Die-stamping
- Injection-molding operations
- Casters
- Clutches
- Counterbalance
- Conveyor tensioning
- Hydraulic cylinders
- Shock absorbers
- Valve actuators
