AMS Analitica - Model Preselettore -Simultaneous PM2.5 and PAH Sampling System

The desired particulate fraction.

• PUF Support for PAH sampling (Dir.2004/107/CE) simultaneously with PM10 or PM2.5 38 l/min.
• Possibility of sampling at different flows (1m3/h) using adapters.
• Compliant with UNI-EN 12341 and EN 14907 TUV Certified.

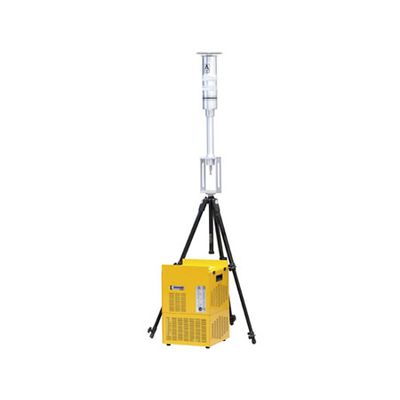

The preselectors for PM10 and PM2.5 particulate have been manufactured in fully compliance with what is indicated in the EN12341 and EN14907 and the respective technical regulations. The supports for PUF or PUF+XAD-2 have been obtained according to the requirements of the ISO-12884 Regulations and the adopted technical standard regulations in the CEE 107 Decree. Made of anodised aluminium with the Anticorodal® treatment, the new preselector for particulate and PAH is lodged on an extendible support so as to enable better positioning for better function during sampling.

The filter holder support in the area below the impactor has been made up of an easily replaceable cassette in POM plastic (Polyoxymethylene) enabling both the substitution of the membrane as well as easier transport. After passing through the filter, the air passes through the PUF cartridge trapping the gaseous phase of the PAH. This solution facilitates those sampling operations where a great deal of data must be acquired. With the LVS combined impactor, AMS Analitica offer a small revolution in the approach to sampling as dictated by the new regulations. The base components of the PM10 and PM2.5 TUV certified impactor, sold until now may be integrated with the new PAH sampling device. It will be sufficient to order the set for the transformation of the previous version to the new one to be ready for sampling in compliance with the new regulatory requirements.

Optionally there is a kit available for sampling containing:

• 2 glass PUF vials
• 1 package of 10 pcs. of SKC purified polyurethane foam
• 3 cassette supports for 47mm filtering membranes
• 1 package of 25 Quartz filter 47mm

Code: Article

• 600/LWSPM001K: LVS PM10/PUF Inlet 38 l/min. With tripod stand TUV certified
• 600/LWSPM002K: LVS PM2,5/PUF Inlet 38 l/min. With tripod stand TUV certified
• 600/101.001.01: PM10 Impactor only 1m3/h
• 600/102.010.01: PM10 Impactor only 2,3m3/h
• 600/103.003.01: PM2,5 Impactor only 1m3/h
• 600/LWS25ADK: Adapter kit to upgrade existing PM10 Inlet to PM2,5 with TUV Cert.
• 600/PFC.47PM: Replacement 47mm PTFE filter cassette
• MT/XDB: Replacement Tripod stand
• FAN/MFQ047:  Quartz micro fiber filters 47mm Box.25pcs
• PL/7212FF47:  Fiberfilm™ GlassFiber/Ptfe 47mm Box.50pz
• 600/SSK047K:  Start Up Kit with filter ad accessories to PM10/PUF
• 600/LWSCOM01K: Adapter kit to upgrade existing PM10 Inlet to PM2,5 with TUV Cert.
•  600/LWSOR01K: Set O-ring per LWS Combined Impactor
