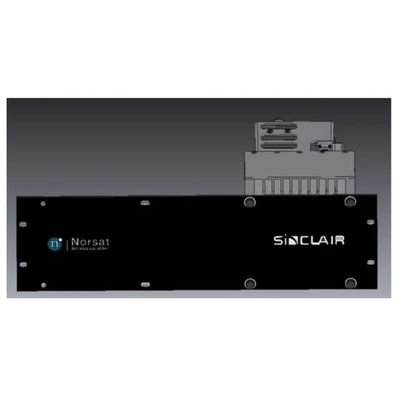

Sinclair - Model TXC4231-1 -Transmitter Combiners
1 CH, Ceramic Combiner, Ultra High Q, 763-776 MHz , dual stage. Field tunable, Dual stage isolator, Compact 3U height.
- Electrical
- Frequency Range (MHz) : 763 to 776
- Impedance (Ω) : 50
- Input Connectors : N-Female
- Isolation Antenna To Tx : 60
- Isolation Antenna To Tx (dB) : 60
- Isolation Tx To Tx : 70
- Isolation Tx To Tx (dB) : 70
- Number Of Channels : 1
- Output Connectors : N-Female
- Output Vswr : 2:01
- Mechanical
- Depth (in) : 14
- Length Height (in) : 5.25
- Mounting Configurations : 19 inch rack
- Width (in) : 19
- Environmental
- Temperature Range (°C) : -10 to 60
