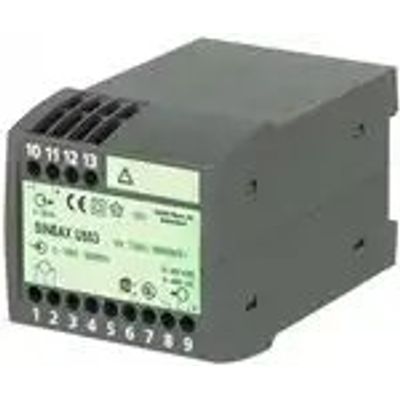

Model SINEAX U553 -Sineax Voltage Transducers

SHARE

The SINEAX U553 Single Phase Measuring Transducer is a measuring transducer for the transformation of sinusoidal or distorted alternating voltage. The SINEAX U553 Single Phase Measuring Transducer is supplied with power supply terminal.

Most popular related searches
process monitoring
  • Measurement method: logarithmic process
  • Measurement input: alternating voltage, sinusoidal or distorted, true RMS value measurement
  • Nominal input voltage: 0…20 to 0…690 V
  • Measurement output: unipolar and live-zero
    0…1.0 to 0…20 mA resp. live-zero 0.2…1 to 4…20 mA or
    0…1 to 0…10 V resp. live-zero 0.2…1 to 2…10 V
  • Power supply: wide DC, AC power pack tolerance
  • Standard as marine version per Lloyd’s Register of Shipping
  • P13/70 housing for top-hat rail mounting
  • CSA certificate , German Lloyd approval
