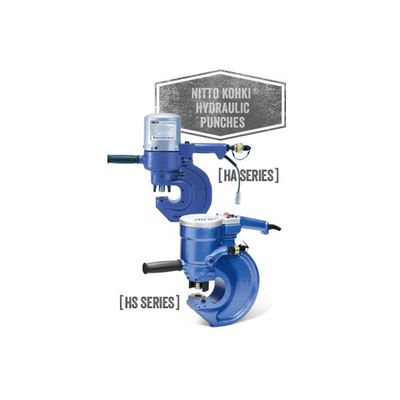

Nitto Kohki - Model HA and HS Series -Single-Acting and Double-Acting Hydraulic Punches
Nitto Kohki Hydraulic Punches are available from GSS Machinery in HS and HA Series models. These are the industry leader in portable hydraulic punching for metal workers and fabricators. They are low maintenance, able to punch a variety of metals and metal thicknesses and are built to last.
Most popular related searches
Features
- Double acting hydraulic system.
- Automatic return mode.
- Inching mode for more precise control.
- Light weight, easy maneuverability.
Specs
- Punching Diameter: 1 1/16″, 15/16″ and 7/8″
- Punching Thickness: 5/8″ and 1/2″
- Throat Depth: 4 5/16″, 2 3/4″ and 2 3/8″
- Punching Time: 11.8 sec. and 7.9 sec.
- Weight: 66 lbs., 56 lbs. and 45 lbs.
Features
- Punch, return, and reset operations are fully automatic.
- Single hose and easy maneuverability.
- An emergency switch stops the punch instantly at any time.
Specs
- Punching Diameter: 1 1/16″, 15/16″ and 7/8″
- Punching Thickness: 5/8″ and 1/2″
- Throat Depth: 4 5/16″, 2 3/4″ and 2 3/8″
- Punching Time: 16.5 sec. and 10.5 sec.
- Weight: 47 lbs., 63 lbs. and 78 lbs.
