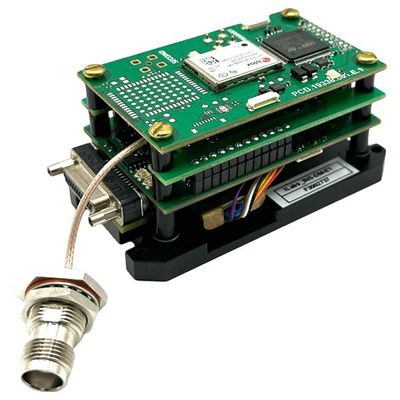

Inertial Labs - Model INS-BU-OEM -Single Antenna GPS-Aided Inertial Navigation Systems

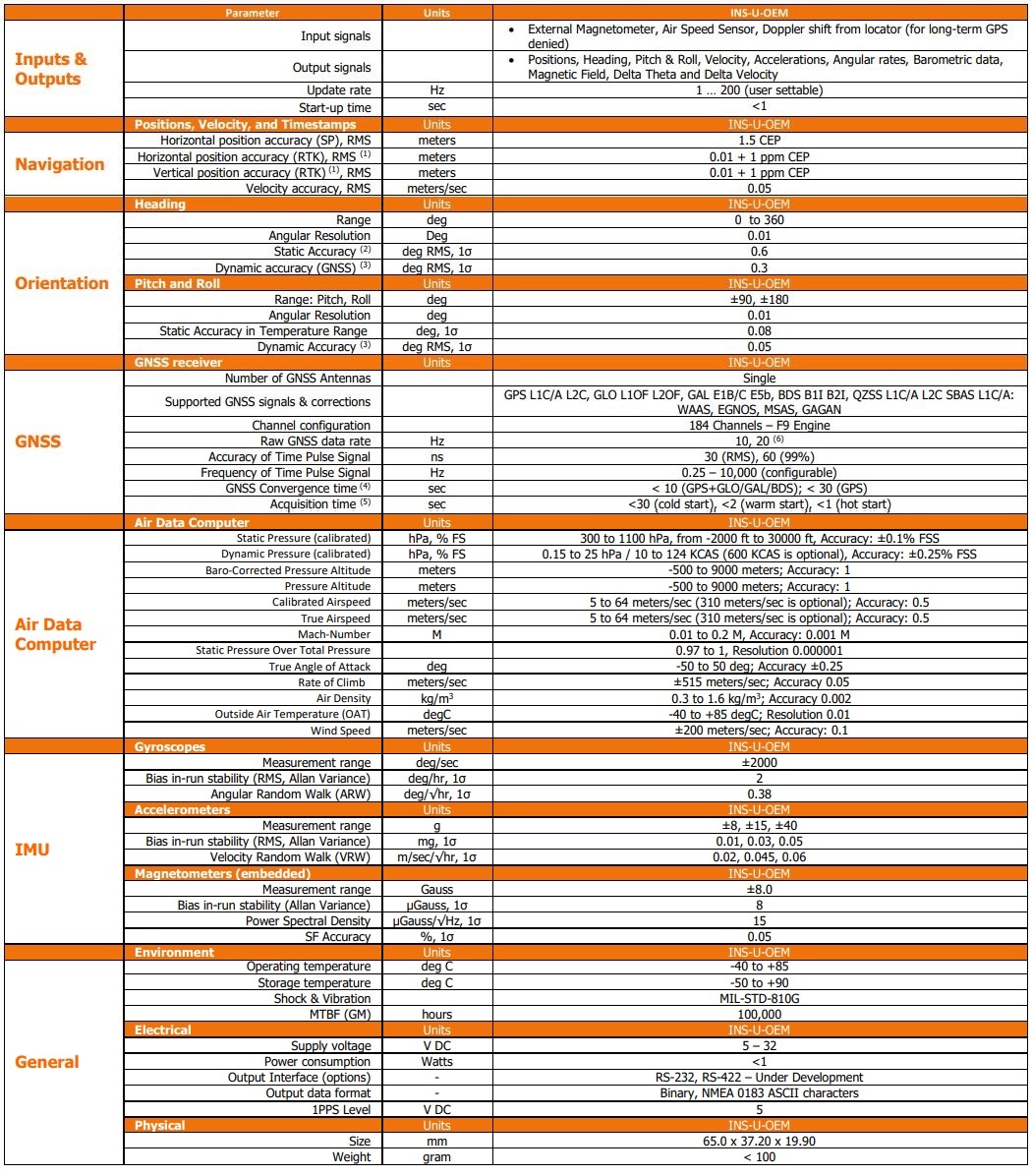

Models: Single Antenna, Single Antenna u-blox GNSS OEM INS. Heading Accuracy: 0.6° static / 0.3° dynamic / 0.1° (PPK). Position Accuracy: 1cm (RTK). Pitch & Roll Accuracy: 0.08° static / 0.05° dynamic. GNSS Constellations: BDS, GAL, GLO, GPS, QZSS. Corrections: RTK. Type of IMU: MEMS. Magnetometer: Embedded Mini-Fluxgate Magnetometers. Size (mm): 85.5 x 47.7 x 39.3. Weight (gram): 174. Applications: Remote Sensing; Real Time UAV Scanning; Aerial Surveying; Integrated LiDAR Payload.
(2) RMS, incremental error growth from steady state accuracy. Post-processing results using third party software
(3) With converged Inertial filter
(4) tracks up to 60 L1/L2 satellites
(5) 50 Hz while tracking up to 20 satellites. 10 Hz position update rate for Basic model of INS
(6) dynamic accuracy may depend on type of motion
(7) time accuracy does not include biases due to RF or antenna delay
(8) 10 (GPS+GLO+GAL+BDS or GPS+GLO+GAL) and 20 (GPS only or GPS+GAL/GLO/BDS)
(9) If tracking GPS only; 1σ specifications are manufactured to a controlled 3σ standard.
