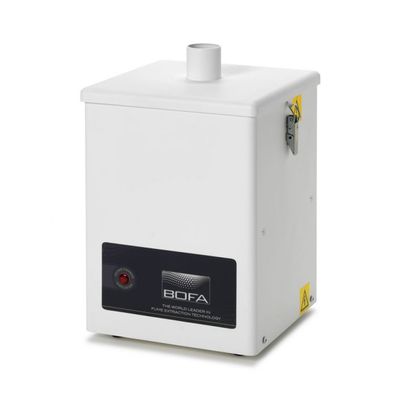

BenchVent - Model BV200-A -Single Arm Solder Fume Extraction System
What can the BV200-A Solder Fume Extraction and Fume Filtration Unit be used for? The BV200-A allows the end user to capture, contain and filter soldering fumes for a cleaner, healthier working, environment within electronic design, rework, design and technology areas. These portable, single station, plug and play systems are complete with ESD extraction arm and installation kit to enable the operator to be set up quickly and easily.
Part No: BV200-A – Single arm Solder fume extraction system
Application:
- Electronics Hand Soldering
Included as standard:
- Combine HEPA/Gas filter
- Pre-filter
- installation kit
- 1x arm
- No major installation costs required making them easy to move with the workbench if factory layouts change.
- Comes complete with a flip top flush sealing mount plate, 50mm ESD Stay Put extraction arm and installation flex and bracket.
- Low noise level and fully integrated filtration with long life filters are ideal for changing production demands.
- Ideal for high volume, at source, soldering applications where tip extraction is not required.
The particulate (intake) filter is a 99.997% HEPA filter which provides gas filtration via deep, granulated, carbon gas filter. The unit also benefits from a blocked filter indicator to facilitate correct filter change times to maintain efficient filtration. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous soldering fumes substances is vastly reduced or eliminated.
These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates on top of the unit are drawn into the intake filter. Cleaned air is exhausted to the base of the bench. Higher grade filters are available on request.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Dimensions
380x260x26 (hxwxd)
Description
Steel construction fan/filter unit finished in white – Floor mounted fan/filter unit – Centrifugal fan motor – 2x50mm ESD stay put extraction arms – 2x3mtrs x 50mm installation flexi tube – table bracket – flip top flush sealing mounting plate – Filter Blocked indicator.
Hose Dimensions
5mtrs x 75mm dia
Arm Dimensions
750mm x 50mm dia
Ave. Air Velocity at Filter Face
180 m3/hr
Fan Motor Spec
230V 50Hz, 110V 60Hz Option
Filters
Carbon/HEPA
Noise Level LAeq dB(A)
55 db(A)
