Emlid

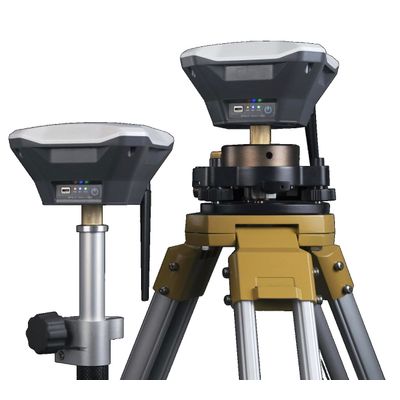

Reach - Model RS+ -Single-Band RTK GNSS Receiver with Centimeter Precision
FromEmlid
Single-band RTK GNSS receiver with centimeter precision. For surveying, mapping and navigation. Comes with a mobile app.
Most popular related searches
The most user-friendly software for data collection that is available both for Android and iOS. Supports thousands of coordinate systems and is translated into multiple languages. With ReachView 3, you can collect and stake out points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.
Mechanical
- Dimensions145x145x85 mm
- Weight690 g
- Operating tº-20…+65 ºC
- Ingress protectionIP67 (water and dust)
Connectivity
- LoRa radio
- Frequency range868/915 MHz
- DistanceUp to 8 km
- Wi-Fi802.11b/g/n
- Bluetooth4.0/2.1 EDR
- PortsRS-232, MicroUSB
Electrical
- AutonomyUp to 30 hrs
- BatteryLiFePO4 3.2 V
- External power input6–40 V
- ChargingMicroUSB 5 V
- CertificationFCC, CE
Data
- CorrectionsNTRIP, RTCM3
- Position outputNMEA, LLH/XYZ
- Data loggingRINEX with events
- with update rate up to 14 Hz
- Internal storage8 GB
Positioning
- Static horizontal5 mm + 1 ppm
- Static vertical10 mm + 2 ppm
- Kinematic horizontal7 mm + 1 ppm
- Kinematic vertical14 mm + 2 ppm
GNSS
- Signal trackedGPS/QZSS L1, GLONASS G1,
- BeiDou B1, Galileo E1, SBAS
- Number of channels72
- Update rates14 Hz / 5 Hz
- IMU9DOF
