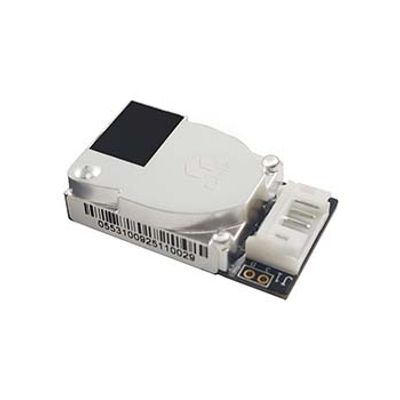

Wuhan Cubic - Model CM1106S-W -Single Beam NDIR CO2 Sensor
CM1106S-W is a single beam NDIR CO2 sensor module, based on non-dispersive infrared (NDIR) technology, which can detect CO2 concentration of indoor air. Connection terminals with PIN holes are suitable for special connection methods. With high accuracy, high stability, small size, it is widely used for ventilation system, air purifier, air conditioner, HVAC transmitter, IAQ monitor, etc.
- NDIR technology with independent intellectual property
- High accuracy, long term stability, long life ( >10years)
- Auto-calibration, no need of maintenance
- Signal output UART/I²C
- Small size and compact structure, easy to install
- Measurement range: 400~5000ppm default
- Response time: ≤30s
- Accuracy: ±(50ppm+3% of reading) @ 0℃-50℃, 50±10%RH (Note 1 and 2)
- Working temperature: -10℃~50℃
- Working humidity: 0~95%RH（non-condensing)
- Power supply: DC 4.5V-5.5V
- Working current: Average＜35mA @ 1s
- Signal output: UART_TTL, PWM, I²C (customized)
- Ripple wave: ＜50mV
- Dimensions: W33*H19.7*D8.9（mm）（pin is not included）
- Weight: 5g
- Installation: Waterproof breathable film upwards
Fresh Air System
With the rapidurbanization process, the problem of energy consumption has become more andmore serious.Among them, building energy consumption is one of the largestenergy consumptions.
Fresh Air System Controller
For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.
Air Quality Monitor
With the improvement of people`s living standards, more and more people begin to pay attention to the air quality of their living environment.
Household & Central Air Conditioner
With the continuous upgrading of home appliances, the all-in-one fresh air air conditioner, which integrates air conditioning, purification, and fresh air functions, has gradually become a new fashion.

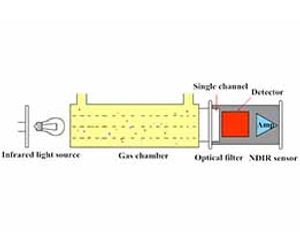

NDIR Technology
The infrared light is directed by the infrared source passing through the gas chamber towards the detector.CO2 molecules inside the gas chamber will only absorb a specific wavelength of the light.
