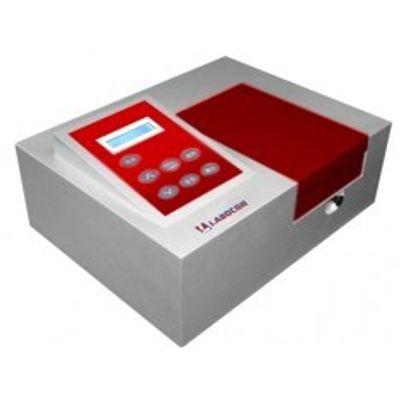

Labocon - Model LUVS-101 -Single Beam UV Visible Spectrophotometer
Labocon Single Beam UV Visible spectrophotometer LUVS-100 series offers the measurement range of 200-1100nm at band width of 2nm and 4nm; these systemsprovidethe high accuracy, reproducibility and high throughput at each run. The LUVS-100 range produces the photometric range of -0.3 to 3 A; 0-200 %T and photometric accuracy of ±0.5%T (0-100%T); which is ideally suitable for quantitative determination of different assays in nucleic acid, proteins, toxicological assays and optical density measurement.
Most popular related searches
single beam UV-VIS spectrophotometer
UV-VIS spectrophotometer
single beam visible spectrophotometer
tungsten halogen lamp
UV-VIS
visible spectrophotometer
single beam spectrophotometer
spectrophotometer uv
spectrophotometer
cell culture
- Wavelength range
- 200nm-1100nm
- Spectral Bandwidth
- 2nm and 4nm
- Stray Light
- Stray light is achieved in range of ≤0.2% -≤0.5%T at 220nm and 340nm
- Light source
- Deuterium and tungsten halogen lamp
- Sample size
- A wide range of standard cuvettes can be used based on the sensitivity or sample volume requirements.
- Sophisticated and simplified sample analysis software
- The sample analysis software provides the scanning, fixed wavelength analysis, quantitative analysis, data collection, storage, export, and reporting.
- With additional feature of an easy access USB port available in the unit which enables results to be stored directly to a USB memory stick for easy transfer of data. It can store up to 500 results.
- Microprocessor controlled technology
- Uniquely designed optical system with holographic grating and receiver ensures excellent performance
- 1200 lines/mm holographic grating
- Manual wavelength setting
- Easy to operate and allows scalable and upgradable scanning
- Transmittance and absorbance measurement of samples at specified wavelength
- Quantitative analysis of samples and provides automatically built standard curve
- Can save 200 standard curve and 500 groups of data
- Adopts stand-alone operation with linear regression equation measurement
- Latest processing technology enables convenient operation
- USB data port
These systems are best suitable for following application:
- For measurement of DNA, RNA and oligonucleotide and Protein
- Proteins can be quantitated by BCA, Biuret, Bradford, Direct UV and Lowry
- The OD of bacterial cell culture solutions can be measured to optimize harvest times
- For the determination of metal and organic non-metal analytes in water
- Ideal to be use in petrochemical labs as they are solvent resistant such as Naphthalene in aviation
- Built-in printer and anti-controlled PC software
- Wavelength Range: 200-1100 nm
- Wavelength Accuracy: ±1 nm
- Wavelength Repeatability: ±0.5 nm
- Spectral Bandwidth: 2 nm, 4 nm
- Stability: ±0.002 A/hr. at 500 nm, 0 A
- Baseline Flatness: None
- Photometric Range: -0.3 to 3 A; 0-200 %T; -9999 to 9999 C
- Photometric Accuracy: ±0.5 %T (0-100%T)
- Photometric Repeatability: ±0.2 %T (0-100%T)
- Monochromator: Littrow Diffraction Monochromator
- Stray Light: ≤0.2 %T (220nm, 340nm)
- Light Source: Deuterium Lamp and Tungsten-Halogen Lamp
- Display: LCD
- Noise: None
- Overall Dimension: 470x380x200 mm
- Power: 100 W
- Power Supply: 90-230V
- Weight: 12/13.5 kg
- Catalog No.: 9153161164
