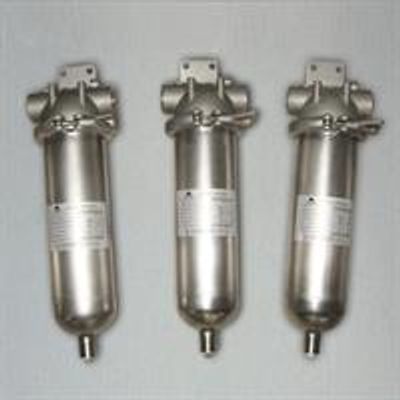

Feature-TecModel ELF-S -Single Cartridge Filter Housing

SHARE

Accepts 25.4cm (10")/50.8cm (20"). Code 6 and Double Open End Filter Cartridges. Operating pressure to 20 bar permits use in wide range of applications. In-line inlet and outlet connections for easy installation. Quick-opening design with rugged cast clamp for fast filter change-outs. Stainless steel for durable and corrosion resistance. Optional mounting brackets available.

Most popular related searches
  • Design Pressure 20 bar
  • Materials: Head SS304,SS316L
  • Bowl SS304,SS316L
  • Connections: Inlet/Outlet 1" NPT,BSP
  • Vent: 1/4" NPT,BSP
  • Drain: 1/4" MPT,BSP
  • Seal Materials: Buna,EPDM,Si.Rubber,FEP/Viton
  • ELF-S is suitable for various industrial applications such as high pressure cleaning.
