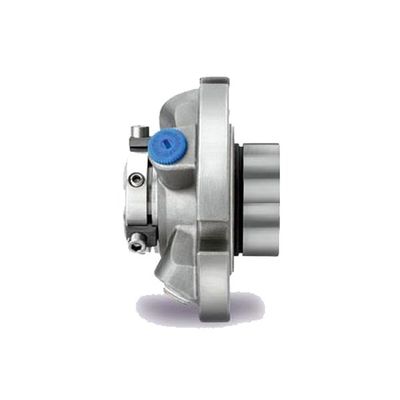

Alflaah - Model Type 13AS -Single Cartridge Seal

Single Acting, Independent of Direction of Rotation. Face Materials – Carbon, Tungsten Carbide, Silicon Carbide. Metal Parts – SS 316, SS 304. Seal Elastomer – Viton, EPDM, Silicon, Aflas, PTFE, GFT, Karlez, FEP, TTV. Applications – Slurry pump, Pulp & paper, Sludge & Syrup pump, Chemical, Petrochemical & Refinery. Operating Limits – Shaft Diameter d1 :18….100mm. Pressure p : 5…..35 bar (max). temperature : -20….+260°C. Speed : 3000 r.p.m.
