Aidu - Single Channel MT Electromagnetic Geophysical Equipment

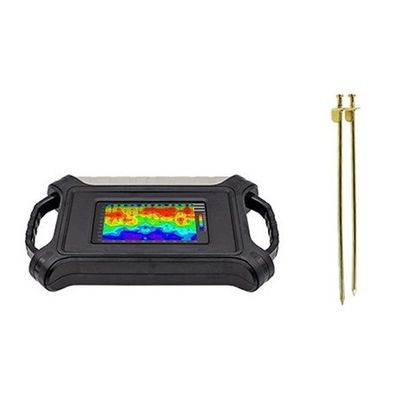

ADMT series single channel MT electromagnetic method instrument is a basic MT electromagnetic method instrument for time-sharing measurement of MT method electric field and MT method electromagnetic field.

The MT electromagnetic method and frequency sounding method are simplified for time-sharing measurement. The standard 7-inch IPS wide-angle touch screen can be used for real-time imaging, and data sharing on the instrument, mobile phone and computer PC.The device is  portable , high accurate,  intelligent and simple. Standard configuration is a detachable polymer battery, 20m MN measuring line, MN electrode and TT electromagnetic probe measuring mode.

The field operation is very convenient and highly recognized by customers.

It has been listed to obtain several invention patents (Patent No. ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9) and has been recognized as a high-tech achievement transformation project in Shanghai.

Main uses:It is widely used for detailed and census exploration of all kinds of metallic and non-metallic ores, for detailed and census exploration of groundwater search, for environmental protection investigation, power design, engineering exploration, geothermal exploration, exploration of coal mining void areas, geological disaster investigation, etc.

49 Years Research and Development

Stable       Accurate

Free upgrading at the original price after purchasing within six months

ADMT series products use the earth`s natural electromagnetic field as the working field source to study the electrical structure inside the earth. According to the principle that electromagnetic waves of different frequencies have different skin depths in the conductive medium, the earth`s electromagnetic response sequence from high frequency to low frequency is measured on the surface of the earth. , to study the difference in electrical changes of underground geological bodies at different depths, and to determine the occurrence state of underground geological bodies

Since the development of the short-wire D75 electrical method in 1973, we have been working hard. This high-density MT geophysical probe uses 16-channel simultaneous input measurement to obtain a stable field source, solves the problem of natural electric field changes at any time, and solves repeated measurement data. The shortcomings of different profiles, combined with light and efficient, precise and intelligent and advanced Internet of Things technology, are well received by new and old users.

CUSTOMER USE EFFECT

Burma Maoqi open-pit mining exploration
