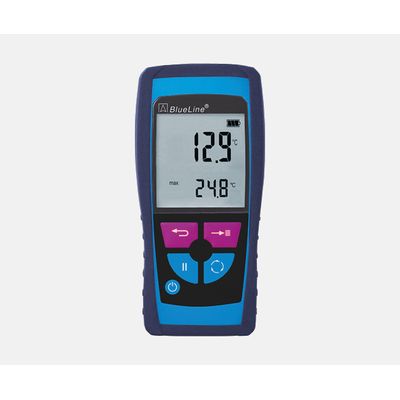

Systronik - Model TM 7 -M070 00 08 10 -Single-Channel Temperature Analyzers
The single-channel TM 7 temperature measuring instrument excels with easy handling. The large LC display with two lines provides clear readings. No graphical gimmicks, but optimum display of measurement results.
Most popular related searches
temperature monitoring system
temperature monitoring
single channel analyzer
thermocouple
automatic monitoring
- Short response time for measurements at cycles of a second
- Large, lit LC display for simultaneous indication of two measured values
- Hold function for measured values
- Automatic segment test when program starts
General data
- Dimensions H x W x D 143 x 66 x 37 mm
- Weight approx. 250 g
- Material housing Plastic (PA)
- Display type 7-segment LCD with LED backlights
- Measuring range -50 to 1,100 °C
- Accuracy 3.0 % RDG ±2.0 K (-50 to 0 °C) 0.5 % RDG ±0.5 K (0 to 100 °C) 0.5 % RDG ±1 K (100 to 1,100 °C)
- Resolution 0.1 °C (< 100 °C),1 °C (> 100 °C)
- Operating temperature 0 to 45 °C
- Storage temperature -20 to 50 °C
- Probe connection 1x socket for thermocouple
- Power supply 2x 1.5 V batteries AA
