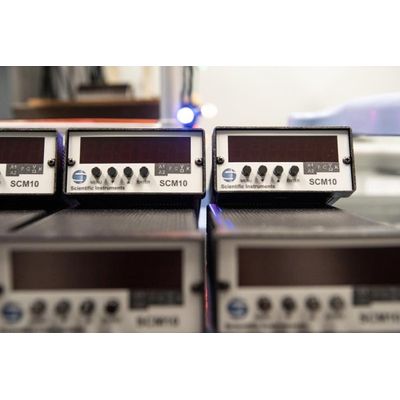

Scientific Instrument - Model SCM10 -Single Channel Temperature Monitor
The SCM10, single channel temperature monitor, is a compact, reliable instrument capable of providing extremely accurate measurements for a variety of applications. The unit supports diode and RTD sensors and it can be configured for the appropriate sensor type using the front panel or the utility software. Two convenient sensor excitation currents are provided to choose from. The SCM10 provides a 4 –leaded differential measurement for accurate temperature measurements. Measurements are available in temperature units K, °C or °F , or sensor units V or Ω.
The SCM10 has 9 standard sensor curves that are programmed into the instrument from the factory. It also provides room for one 200 point user curve, which may be loaded into the instrument using the utility software. With a serial, Ethernet, and convenient graphical user interface, as well as an ASCII command set and LabVIEW™ drivers, the SCM10 can be used as a stand-alone temperature monitor or can be easily integrated into other systems.
Weight : 4 lbs
Dimensions : 15 × 10 × 8 in
Thermometry Number of Inputs : 1
Measurement Type :
4-lead single polarity
Excitation :
Constant current, 10μA or 1mA (0.01%)
A/D Resolution: 24 bit
Input Accuracy :
Sensor Dependent
Max Measurement Rate :
5 rdg/s
Supported Sensors :
Silicon diodes
RTD’s
Gallium Arsenide (25K & above) Ru0 1K?, Ru0 100K?, Pt 100?, Pt 1000?
Cernox
Carbon-Glass (4K & above)
Standard Curves :
Si410, Si430, Si435, DT470, DT670, CTI, PT100, PT1000, RO600, RO105
User Curve :
One 200-point user curve in non-volatile memory
Input Connector :
DB15
Front Panel Display Type :
6 digit LED
Front Panel Display Units :
K, °C, °F, V, Ω
Front Panel Display Update Rate :
2 rdg/s
Front Panel Temperature Display Resolution :
0.001° between 0-99.999°, 0.01° between 100-999.99°, 0.1° above 1000°
Front Panel Sensor Units Display Resolution :
100uV (for diode type), Sensor Dependent (for RTD type)
Front Panel Keys :
Menu, ˆ (Up Arrow), ? (Down Arrow), Enter
Front Panel Features :
View & Edit Configuration Settings, Instrument Reset
Serial Interface Format :
RS-232C
Serial Interface Baud Rates :
9600, 19600, 57600, 115200
Serial Interface Functionality :
Graphical User Interface, LabView Drivers (Version 8.0 and above)
Serial Interface Connector :
DB9
Ethernet Interface Format :
10-BaseT
Ethernet Interface Speed :
10 Mbps
Ethernet Interface Functionality :
Graphical User Interface, LabView Drivers , Web Based Monitoring Utility
Ethernet Interface Connector :
RJ-45
Alarm Number :
2, High and Low
Alarm Settings :
High Setpoint, Low Setpoint, Dead band, Latching or Non-latching, Alarm On/Off
Alarm Actuators :
Front Panel LEDs, relays
Number of Relays :
2
Contacts :
Normally Open (NO), Normally Closed (NC), and Common (C)
Relay Contact Rating :
24 VDC at 1 A
Relay Settings :
Manually off, manually on, follows alarms
Connector :
DB15
Analog Output Isolation :
Output is not isolated from chassis ground
Analog Output Update Rate :
2rdg/s
Voltage/Current Output :
RANGE:0-10V, 4-20mA
RESOLUTION:0.16 mV0.3 μA
ACCURACY:±1.25 mV±2.5 μA
MIN. LOAD RESISTANCE500 Ω
(short-circuit protected) N/A
COMPLIANCE VOLTAGEN/A10 V
LOAD REGULATION:N/A10 V
Settings :
Scale voltage or current with temperature, native sensor units, or natural logarithm of sensor
units
Power Requirement :
Regulated 9-24 VDC at 500 mA, Barrel Plug 5.5 mm OD x 2.5 mm ID x 9.9 mm L, Center Positive
Size :
1/8 DIN
Supported OS :
Windows 7.0, XP & Vista (32 bit)
Mounting :
Panel mount into 91 mm W x 44 mm H (3.6 x 1.7 in) cutout
Weight :
0.45 kg (1 lb)
Approval :
CE mark, RoHS compliant
