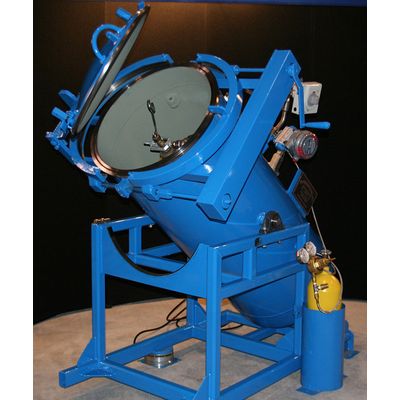

ChlorTainer - Model 150 -Single Chlorine Gas Cylinder Secondary Containment Vessel

The vessel comes with a 2-bolt chain-drive closure and the following additional standard features:

• Interior Rollers
• Vacuum/Pressure Gauge
• Interior Flex Line with Yoke and Yoke Adapter
• Chlorine Supply Ball Valve with Monel Body and Hastelloy Trim
• Electronic Scale System with SCADA
• Manual Brass Valves
• Fail-Safe Valve Assembly
• Pressure Relief Valve
• Nitrogen System for Fail-Safe Valve Assembly
• Chemical Container Loading System
• Pressure Switch

The following optional upgrades may also be included:

• Spare Parts Kit

ChlorTainer is a high-pressure containment vessel into which a 150-lb chemical cylinder is processed. If the cylinder should leak, all chemicals are contained within the vessel and processed at a normal rate, so no hazardous waste is generated. Scrubber systems, fans, pumps, tanks, and mechanical system are not required. ChlorTainer addresses RMP considerations, enhances site security, and provides fail-safe protection for plant operators.

Our Single 150 vessel accommodates one 150-lb cylinder, while the Twin & Dual ChlorTainers accommodate two 150-lb cylinders. The Twin processes both cylinders simultaneously, while the Dual processes gas from only one cylinder at a time and is designed for automatic switchover capabilities. Whether you need a 150 Single, Twin, or Dual ChlorTainer, all vessels come with a 2-bolt chain-drive closure, a scale system and a movable loader.

The Safest, Most Reliable Technology for Processing and Preventing a Chemical Release

For the safety of water treatment plants and industrial facilities, ChlorTainer is the best way to store and process hazardous chemicals.

It is a simple secondary containment vessel that can be installed indoors, or even located in an open-air structure as long as it provides shelter from direct sunlight and rain.

ChlorTainer provides safety and containment for processing a variety of chemicals such as chlorine gas, sulfur dioxide, and anhydrous ammonia.

ChlorTainer provides dependable operation with minimal annual maintenance and is designed to have a life expectancy of no less than 100 year

• Design Pressure: 285 psig @ 300° F
• Minimum Design Metal Temperature: -20° F @ 285 psig
• Corrosion Allowance: 1/16 inch
• Radiograph Inspection:
• ASME Section V
• ASME Section VIII
• Hydro Test: 375 psig per UG-99
• Interior Paint: 2.5-3.0 Mils DFT Inorganic Zinc
• Exterior Paint
• 4-6 Mils DFT Epoxy
• 2 Mils DFT Polyurethane
• Welding: ASME Code Section IX
• Vessel Weight: 1,500 pounds
• Materials Used: Carbon Steel Vessel, Monel 400 Bossets

NOTE: Material used may vary when designed for other toxic gases
