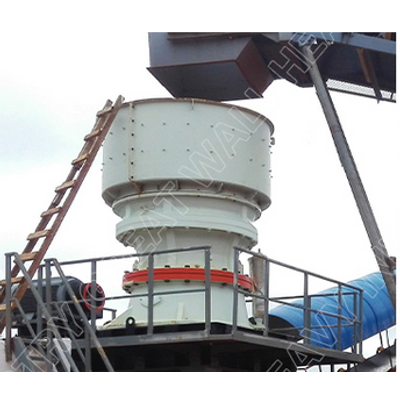

Great Wall - Model HSC -Single Cylinder Hydraulic Cone Crusher
HSC single cylinder hydraulic cone crusher is a high performance single cylinder structure hydraulic cone crusher after optimal designed, mainly used in industry of mining, building materials, metallurgy, etc. It could process medium and fine crushing for granite, limestone, river stone, basalt, iron stone, etc various rocks.
- Reasonable eccentricity and swing frequency as well as special crushing cavity design make the equipment with larger crushing ratio, higher capacity and better grain shape;
- Set discharge port adjustment and overload protection function in one, simple structure, easy to use;
- The intelligent control system can monitor running status of the equipment in real time, so as to make timely adjustment and keep the equipment in an ideal running state;
- Enhanced equipment structure and advanced overload protection system ensure long-term safe operation of the equipment.
When machine works, electric motor would drive level transmission shaft to rotate via v-belt, then transmission shaft would drive eccentric bushing to rotate by bevel gear, the moving cone makes a swing motion under the forced action of eccentric bushing. After the material enters crushing chamber, it is continuously impacted and crushed between the mantle and concave, finally crushed material is discharged from crusher bottom.
