Impero-Petro - Single / Double Valve Float Shoe

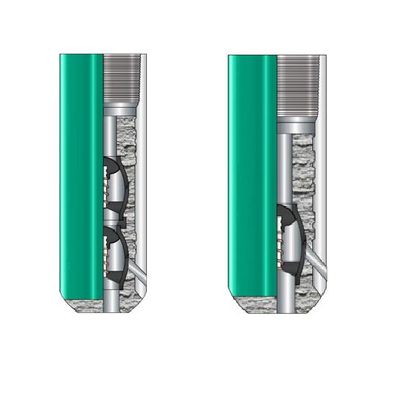

Float Shoe is a cylindrical steel  section with a rounded nose which guides the casing toward the that is  attached to the bottom of the casing string towards the center of the hole.  It contains a check valve/ poppet valve to permit  fluid to pass downward but not  upward through the casing.

• Fast Drill Out.
• Non-Rotating Profile Available
• Available in Side-Jet, Down-Jet, Up-Jet Port
• Stab In profile available in large size
• Internal Parts are PDC drillable.
• Float Shoe is available in all API  grade material.
• Float shoe can be furnished in API threads as well as in Premium  threads.
• Jet Port/Nose configuration is available upon request, Impero offers  Side Jet Ports, Down Jet Ports and  Up Jet Ports.
• Valve is tested as per API RP 10F  Category III C. Float Shoe is available in Single and Double valve Configuration.Maximum Back Pressure rating:  5000 psi @400°F.
• Tubing Float Shoe for high  pressure up to 10000 PSI.Float Shoe is available in different type of nose as per the application.
• Chip breaker features are in all  type of aluminum nose as well  as Phenolic nose.
