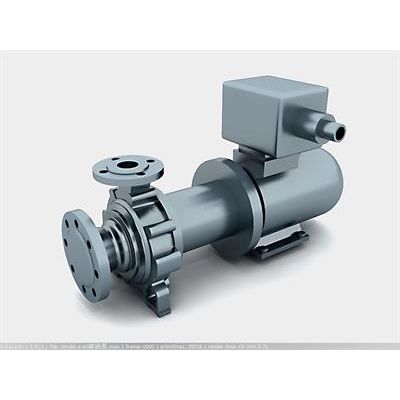

Colossus - Model CMX -Single, Dual Stage Magnetic Vortex Pump

SHARE

Low Running Costs. Leakage free. Specially for Smaller Flow and Higher Head. Single-Stage Single-Flow Volute Casing for up to 16 Bar Operating Pressure. Cartridge Assemblies allowing fast replacement of the Rotating Element. Single or dual stage horizontal radial split. Small-flow and high-lift. Not used in the working condition with restrict requirement on NPSH.

Most popular related searches
sealless pump
vortex pump
magnetic pump
friction reducer

Applaction:

Petroleum Refinery / Chemical Plant / Power Plant / Offshore Engineering / Pharmaceutical Industry

Medium:

Clear Medium
Low Temperature Medium
Low Flow Rate/ High Head Mild-Corrosive Medium
(Especially suitable for petrochemical medium)

Specification:

Flow: 0.5-4m3 / h (2~18 US GPM）
Heads: 80-300m (263~985 FT)
Temperature: ≤ 120 ℃ (≤248 ℉)
Power: ≤ 22 kW (≤215 HP)

Structural Features:

Radial Split
Single/Dual Stage Horizontal Pump
Subdivision Cantilevered Structure
Pump Body Supported by Assisted Bracket
Radial Inhalation and Discharge
lockwise Rotation (from the view of motor side)

Design Features:

Modular Design
Easy to change components and reduces repair costs.

Magnetic Rotors
Sealless Pump using non-contacted magnetic rotors in replace of traditional mechanical seals reduces the excess load damages to the motor and pump.

No Lubricated Needed
Reduce energy consumption.

Long-Coupled Electromotor and Bearing Bracket
Reduces the vertical load to the motor and balances out the turbulence in the process of magnetic transmission.

Ceramic and Alloy Sliding Bearing
Reduce the frictional resistance and lose of mechanical power, and greatly increase bearing life.

Titanium Alloy Spacer Sleeve
This material has high electric-resistance and high magnetic permeability; this feature will reduce the eddy loss while ensuring the strength and corrosion-resistance.

Monitoring System
Provides automatic alarm system which will cut off the power in emergency situation. This effectively minimizes the environment damage caused by the leakage of hazardous and toxic medium, and save the energy.
