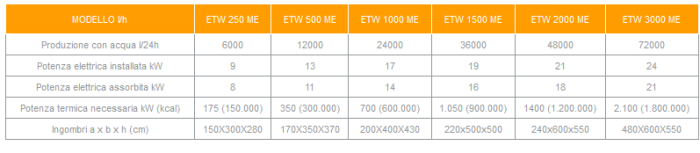

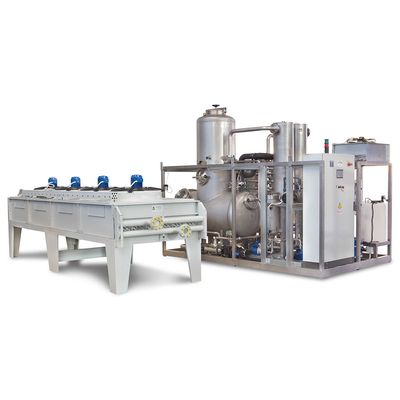

PF10 - Model ETW ME Series -Single Effect Evaporator

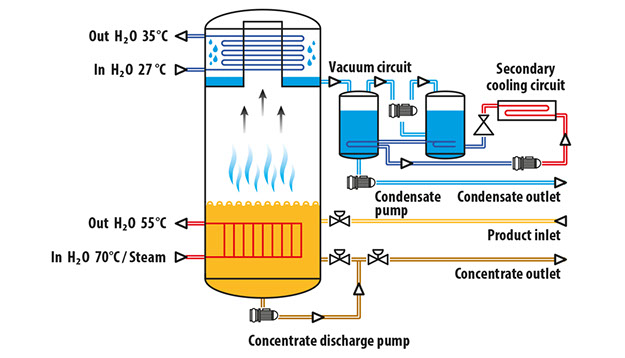

The ETW model is a vacuum evaporator/concentrator with heat exchanger submerged in the treated fluid or, at customer’s request, with an outer shell and tubes heat exchanger. Alternatively, PF 10 can install special submerged plates heat exchangers. These vacuum evaporators/concentrators exploit during the evaporation phase the thermal power supplied by hot water or steam and for the condensation phase the one produced by water from closed circuit dry-coolers or evaporation towers.
