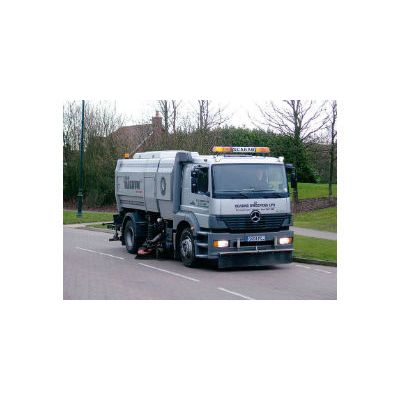

Scarab Magnum Plus - Model 18* Tonne + -Single Engine Heavy-Duty Street Sweepers
The Magnum range of heavy-duty street sweepers provide operators with the most complete solution to the task of maintaining a clean environment regardless of whether the job at hand is a heaverly littered urban street or a demanding road construction site. It is not only the wide choice of chassis/hopper capacity configurations that makes the Magnum so versatile.
The Magnum Plus can be fitted to a wide choice of chassis including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault, Hino and UD. For details of these and other suitable chassis specifications, please contact our sales department.
*For customers outside of the UK we can build the Magnum Plus on a chassis over 18 tonne.
Single Engine
Scarab can justifiably claim to be the champion behind the modernday success of the truck-mounted sweeper powered from a Single Engine.
Operating the whole machine from the engine of the truck chassis provides many advantages, for example:
- Less fuel consumption
- Lower noise
- Lower engine emissions
- Less maintenance & downtime
- Greater payload
- Hydrostatic or Unidrive
Hydrostatic Roadsweeper
A Scarab designed hydrostatic gearbox is installed in the chassis driveline to exactly suit any customers’ chassis and application. Hydrostatic drive, plus a simple joystick control for Forward and Reverse, allows single-pedal control reducing fatigue and enabling the driver to fully concentrate on sweeping.
Unidrive Single Engine
The sweeping equipment is powered from a Power Take Off (PTO) fitted to the truck engine. The Magnum control system manages engine speed to ensure optimum sweeping performance. The sweeper is usually operated in a low gear for slow speed. An optional reduction gearbox is available where necessary.
Scarab’s CANbus control system has revolutionised the way sweepers are operated and maintained.
Intuitive controls and a conveniently positioned colour monitor provide comprehensive levels of feedback to both operating and service personnel.
A graphical display indicates the sweeping configuration and conditions of the vehicle systems including warnings and regular service reminders. Real-time monitoring and datalogging provides valuable assistance in resolving problems and achieving optimum machine performance.
Scarab CANbus includes universal connectors for fitment of Global positioning System (GPS) and the option of real-time data via telematic up-link.
A conveniently positioned colour monitor displays operating information in graphical form and enables the driver and service personnel to scroll through a number of screens to display and adjust vehicle set-up.
