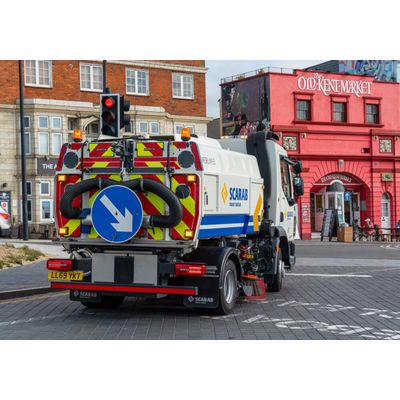

Scarab Merlin - Model 55 -Single Engine Sweepers

• Size: 7.5-8.3 tonne GVW
• Sweeping speed: 0-20 mph / 0-32 kph
• Hopper capacity: 5.5 cubic metres
• Water tank: 900 litres
• Engine: Single Engine
• Typical payload: 1750 - 2000 kg
• Sweep width: 2290mm single/ 2850mm dual

Scarab can justifiably claim to be the pioneer of the truck-mounted sweeper powered from a single-engine.

Operating the whole machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight, greater payload and reduced maintenance.

The Merlin 55 is just one of Scarab's expertly engineered truck-mounted road sweeping solutions. Because of its flexibility, the Merlin 55 can be fitted to a wide variety of chassis from as low as 7.5 tonnes GVW.

For details on suitable chassis specifications, please contact your local distributor by visiting our Dealer Network.

Hydrostatic System:

The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. It also offers a range of operator benefits with its simple joystick control for forward and reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.

Powerful & Reliable Suction Performance

A stainless steel 905.5mm roof-mounted impellor is positioned to produce a short, efficient airflow path for high suction performance and reduced power consumption.

Extensive Sweeping Capabilities

M55 SweepingThe Merlin 55 is available in both single and optional dual sweep configuration. When the suction nozzle, side brush and Widesweep functions are in operation the Merlin 55 can sweep at a 2290mm width. However, the brushes can reach an impressive 2850mm span when simultaneously dual sweeping.

Strong, Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 Stainless Steel, which is shot blasted before a two-pack epoxy primer is applied followed by a hard-wearing topcoat.

Particulate screening via a hinged stainless-steel mesh filter – swings down for ease of cleaning and access to the stainless-steel inlet cone.

Total, Intuitive Control

CANbus Control

The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition - while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your machine running at its most efficient.

Market Leading After Sales Support

As well as supplying market-leading sweeping solutions around the world, Scarab is proud to offer comprehensive After Sales support to clients.

We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer.

What's more, thanks to our dedicated parts warehouse, Scarab ensures genuine parts are always in stock and can ship its trusted components to clients around the world.

The Merlin 55 comes with a variety of additional options to help any operator meet the demands of their operation.

• High Pressure Water
• Auxillary Channel Brush
• Suction Tube Dust Suppression
• Door-mounted Wanderhose
