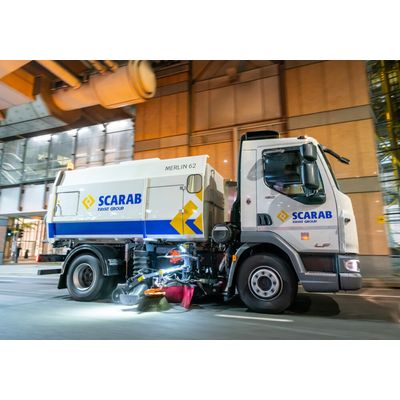

Scarab Merlin - Model 62 -Single Engine Sweepers

• Size: 10-16 tonne GVW
• Sweeping speed: 0-20 mph / 0-32 kph
• Hopper capacity: 6.2 cubic metres
• Water tank: 1250 litres
• Engine: Single Engine
• Typical payload: 5500-8500 kg
• Sweep width: 2365mm single/ 3200mm dual

Scarab can justifiably claim to be the pioneer of the truck-mounted sweeper powered from a single-engine.

Operating the whole machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight, greater payload and reduced maintenance.

The Merlin 62 is just one of Scarab's expertly engineered truck-mounted road sweeping solutions. Because of its flexibility, the Merlin 62 can be fitted to a wide choice of chassis including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault, Hino and more.

For details on suitable chassis specifications, please contact your local distributor by visiting our Dealer Network.

The single-engine Merlin 62 mounted onto a CNG chassis satisfies the need to have a street cleansing machine that operates solely on alternative fuel, whilst also giving the benefits of reduced fuel costs combined with lower servicing and chassis maintenance costs. The Merlin 62 CNG constitutes an economic, up-to-date and dependable alternative to diesel vehicles, improving both acoustic and gaseous emissions simultaneously.

The hybridization of Scarab's single-engine design and CNG power arguably creates the cleanest combustion engine truck mount sweeper available on the road today.

Hydrostatic System:

The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. It also offers a range of operator benefits with its simple joystick control for Forward and Reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.

Powerful & Reliable Suction Performance

A stainless steel 905.5mm roof-mounted impellor is positioned to produce a short, efficient airflow path for high suction performance and reduced power consumption.

Extensive Sweeping Capabilities

M62 Suction

The Merlin 62 is available in both single and optional dual sweep configuration When the suction nozzle, side brush and widesweep functions are in operation the Merlin 62 can sweep up to 2365mm width. However, the brushes can reach an impressive 3200mm span when simultaneously dual sweeping.

Strong, Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot blasted, a two-pack epoxy primer is applied and a hard-wearing topcoat provides a superior finish. The particulate screening is hinged and swings down to provide access to the operator for cleaning.

Total, Intuitive Control

CANbus Control

The CANbus control system has revolutionised the way Scarab sweepers are operated and maintained. Intuitive controls and a colour monitor provide comprehensive feedback to both the driver and service team.

The clear display indicates the sweeping configuration, vehicle condition and highlights both warnings and service reminders. Our real-time monitoring and data-logging provide valuable assistance in troubleshooting technical problems and helps keep your machine running at its most efficient.

Market Leading After Sales Support

As well as supplying market-leading sweeping solutions around the world, Scarab is proud to offer comprehensive After Sales support to clients.

We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer.

What's more, thanks to our dedicated parts warehouse, Scarab ensures genuine parts are always in stock and can ship its trusted components to clients around the world.
