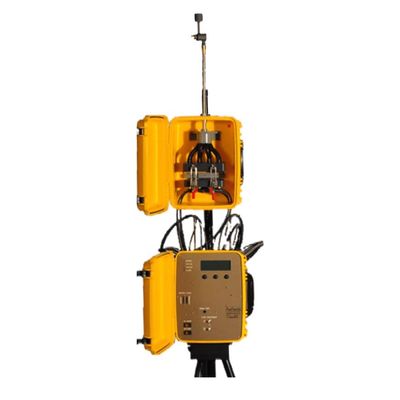

AirPhoton - Single Inlet Aeroexplorer Sampling Station
The Aeroexplorer sampling station is a versatile instrument for collecting particulate matter on filters for later analysis. Particulates can be collected in two sizes, typically PM2.5 and PM10 on up to 8 filters on a user programmable scheduled. The instrument has data ports which can be used to communicate with external instruments such as a weather station to enable collection by wind direction or coordination with our nephelometers. The instruments permits an autonomous particle sampling. Pump turns on/off and sampling advances to next filter slot, automatically, as function of minutes, hours or days. All is directed by operator-initiated programs, input with intuitive button controls or script command uploads.
Additionally, the Aeroexplorer sampling station is highly customizable, accommodating a wide range of research needs. The system components, such as controllers, pumps, inlet boxes, inlet heads, and cartridges, can be configured in various ways to suit specific sampling requirements. This flexibility ensures that users can optimize their setups for accurate and comprehensive particulate matter analysis.
Recently, we have enhanced its capabilities with a new station designed specifically for trace gas measurements. This advanced instrument can measure a variety of gases, including ammonia, nitrates, and volatile organic compounds, each of which play a crucial role in air quality analysis. The instrument is composed by four denuders, which allows us to sample by wind direction. This allows for analysis of source apportionment or fence-line monitoring. This instrument operates at low flow rates which can be supported by solar or battery power so that the instrument can be deployed in remote and or environmentally sensitive areas.
Inlet-box specifications
- Box dimensions: 12.5″ x 15″ x 9″
- Weight: 6 kg
- Installed height: 40″ but varies per configuration
- Control box option: SS5e, SS5e7-1
- Holds FC10, 8-slot filter cartridge
- Flow rate: 1.5-7 lpm, set to control particle size
- Inlet size cut-off options: PM10, PM4, P2.5, or PM1
Control-box specifications
- Box dimensions: 12.5″ x 18″ x 9″
- Weight: 5.3 kg
- Compatible options: SS5i, SS5i-PMx
- Max flow rate: around 7 lpm standard
- Power inputs: 110/220 VAC 50/60Hz
- Auxiliary power input: nominal 12VDC.
- Solar power compatible.
- User sets sampling protocols with intuitive button commands.
- Controls on/off pump and advance to next filter slot as function of minutes, hours or days.
- Data stored on removable memory cards with automatic backups.
- The Aeroexplorer single inlet model can provide autonomous particle sampling. The pump turns on/off and sampling advances to next filter slot, automatically, as function of minutes, hours or days. All is directed by operator-initiated programs, input with intuitive button controls or script command uploads.
