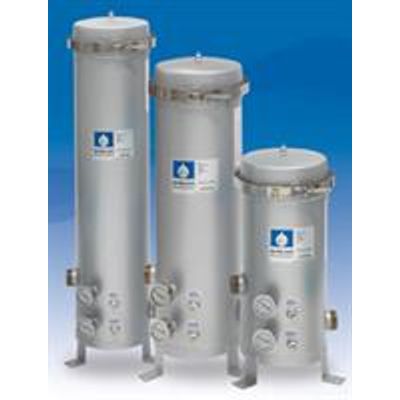

Shelco - Model SJCH Series -Single Jumbo Cartridge Filter Housings

• Designed for residential, commercial and industrial filter applications
• Accepts single jumbo cartridge for easy installation and replacement
• Heavy-duty 304L or 316L Stainless Steel construction for maximum durability and corrosion resistance
• V-band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
• Available in three sizes to support flow rates up to 150 GPM
• Standard with pressure gauges, mounting legs and grounding lug
• 20 micron and above elements may be washed and reused

• Water
• Desalination
• Chemicals
• Food & Beverage
• Electronics
• Oil / Gas
• Power
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper

Maximum Operating Pressure

• 150 psig (10.3 bar) @ 300°F (149°C)

Connections

• Inlet /Outlet: Standard - 2" MNPT
• Optional: MNPT, FNPT or BSP fittings; RF Flanges,
• Sanitary Ferrules or Grooved Fittings
• Drain Ports: 1/2" NPT
• Vent Ports: 1/4" NPT

Materials of Construction

• Head / Shell / Connections: 304L or 316L Stainless Steel
• Closure:
• Clamp – 304L Stainless Steel
• Swing Bolts – Zinc Plated Steel
• Vent and Drain Plugs: 304L or 316L Stainless Steel

Gaskets

• Standard: Buna N (FDA Grade),
• Optional: EPR, Silicone, Teflon Encapsulated Silicone, Viton

Finish

• Poly-coat on exterior surfaces
• Optional: Electro-polish, Glass Bead or Passivate

Custom Options

• Mounting Tabs or Heavy Duty Mounting Legs

See ordering guide for complete selection of options
