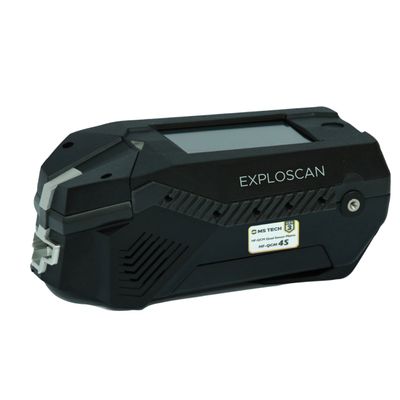

MS Tech - Model EXPLOSCAN -Single-Mode Trace and Vapor Explosives Detector

• HF-QCM sensors
• No radioactive source
• Lightweight (850 gr. with battery)
• High-throughput sampling
• Fast warm-up time
• Self-calibration
• Easy-to-operate
• Low cost-of-ownership
• Trace Particles Sampling
• Vapor Samples Collection

• Aviation Security
• Customers and Border Control
• Air Cargo Screening
• Sea Ports
• Rail & Mass Transit
• Police & Law Enforcement
• Critical Infrastructure
• Military & Defense
• Hotels and Shopping Malls

Technology:
High-Frequency Quartz Crystal Microbalance Nanotechnology Sensors (HF-QCM) No gas carrier. No radioactive source.

Sample Collection Mode:
Trace Particle Mode; Vapor Sampling Mode; Vapor Sniffing Mode.

Trace Particles Mode:
Sample collection and surface swipe of trace particles via cost-effective sampling swabs.

Vapor Sniffing Mode:
Direct vapor sniffing via a vapor sniffing nozzle.

Explosives Detected:

• Military and plastic explosives, including: TNT, Tetryl, RDX, C4, PETN, Semtex, HMX,  Detasheet, Dynamite, Nitroglycerine, and others*
• Peroxide-based explosives, including TATP, HMTD, and others
• Nitrate-based explosives, including: Ammonium Nitrate, Urea Nitrate, and others
• Propellants and Taggants, including: Black and Smokeless Powder, EGDN, and others**
• Additional explosives as per expandable threat library.
• Programmed threat substances depend on the detector version and regulatory authority.

Sensitivity:

• Particles: low nanogram (ng) range.
• Vapors: low parts per billion (ppb) range.

False Alarm Rate:
Less than 2%.

Analysis Time:
7-15 seconds or less.

Data Display:
3.5” high-resolution, anti-reflective, color touch screen.

Printer:
Optional USB printer.

Alarm Method:
Configurable audio alarm and alarm resolution.

Warm-Up Time:
Less than 2 minutes.

Alarm Type:
Audio and visual with substance identification.

Multi-Language Support:
English, French, Spanish, Italian, Portuguese, Russian, Chinese, Korean, Japanese, Arabic, and more.

Data Storage:
Unlimited data logging, including date, time, analysis results and system status.

Data Transfer:
Micro USB 2.0. Optional Bluetooth and/or Wi-Fi.

Input Voltage:
100-240V AC, 50-60Hz.

Battery:
12-V rechargeable Lithium-Ion battery with 6 to 8 hours of field operations; hot swappable for extended operating time.

Operating Humidity:
Less than 95% non-condensing.

Operating Temperature:
-4°F to +131°F (-20°C to + 55°C).

Operating Altitude:
Up to 15,000 ft (4572 m).

Weight:
1.87 lbs (850 g), battery included.

Dimensions:
(L x W x H): 7.78” x 3.50” x 2.78” (19.75 x 8.89 x 7.05 cm).

Carrying Vest:
Supplied with a black breathable vest providing secure attachments for the detector, the Vapor Sampler, and sampling probes.

Case:
Supplied with a ruggedized, MILSPEC case.

Safety:
No hazardous parts; and tamper-proof casing.

Product:
CE Mark, EMC and FCC certification.

Manufacturing Standards:
ISO 9001:2015 manufacturing standards.
